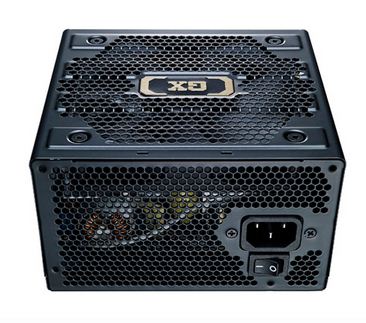

Model RS-550-ACAA-B1
Type Intel Form Factor ATX 12V V2.31
Dimension (W x L x H) 150 x 140 x 86mm / 5.9 x 5.5 x 3.4 inch
Input Voltage 90-264Vac (Full Range)
Input Current 9 - 4.5A
Input Frequency Range 47 - 63Hz
PFC Active PFC (>0.9 typical)
Power Good Signal 100-500ms
Hold Up Time >16ms
Efficiency 85% Typically
MTBF >100,000 Hours
Protection OVP/UVP/OPP/OTP/SCP/OCP
Output Capacity 550W
Operation Temperature 0~40°C
Regulatory CE/UL/FCC/CCC/TUV/C-tick/KCC/CSA/BSMI/GOST
Fan 120mm intelligent fan
Certifications 80 Plus Bronze
Connector MB 20+4 Pin x 1
CPU12V 4+4 Pin x 1
PCI-e 6+2 Pin x 2
SATA x 6
4Pin Peripheral x 3
4Pin Floppy x 1
