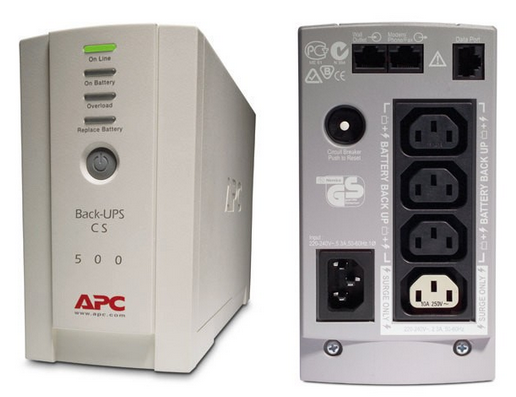

APC BK500EI

₱5555

Add to cart

₱0tax excl.

(price reduced by 100 %)

Online only!

5 items in stock

Reduced price!
Model BK500EI
Output Output Power Capacity:300 Watts / 500 VA

Max Configurable Power:300 Watts / 500 VA

Nominal Output Voltage:230V

Output Frequency (sync to mains):47 - 63 Hz

Topology:Standby

Waveform Type:Stepped approximation to a sinewave

Output Connections:
(1) IEC 320 C13 (Surge Protection) IEC 320 C13
(3) IEC 320 C13 (Battery Backup) IEC 320 C13
(2) IEC Jumpers (Surge Protection)
Input Nominal Input Voltage:230V

Input Frequency:50/60 Hz +/- 3 Hz (auto sensing)

Input Connections:IEC-320-C14 inlet

Cord Length:1.83 meters

Input voltage range for main operations:180 - 266V

Input voltage adjustable range for mains operation:160 - 300V

Maximum Input Current:7A

Input Breaker Capacity:7.0 A
Batteries & Runtime Battery Type:
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Replacement Battery:RBC2

RBC™ Quantity:1
Communications & Management Interface Port(s):USB

Control panel:
LED status display with On Line : On Battery : Replace Battery and Overload indicators

Audible Alarm:
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering Surge energy rating:310 Joules

Filtering:
Full time multi-pole noise filtering : 5% IEEE surge let-through :
zero clamping response time : meets UL 1449

Data Line Protection:
Analog phone line for phone/fax/modem/DSL (RJ-45 connector)
Physical Maximum Height:165.00 mm

Maximum Width:91.00 mm

Maximum Depth:284.00 mm

Net Weight:6.32 KG

Shipping Weight:7.05 KG

Shipping Height:178.00 mm

Shipping Width:241.00 mm

Shipping Depth:368.00 mm

Master Carton Units:2.00

Color:Beige

SCC Codes:107 31304 01635 6

Units per Pallet:70.00
Environmental Operating Environment:0 - 40 °C

Operating Relative Humidity:0 - 95%

Operating Elevation:0-3000 meters

Storage Temperature:-15 - 45 °C

Storage Relative Humidity:0 - 95%

Storage Elevation:0-15000 meters

Audible noise at 1 meter from surface of unit:40.00 dBA

Online Thermal Dissipation:24.00 BTU/hr
Conformance Regulatory Approvals:
C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE

Standard Warranty:2 years repair or replace
Sustainable Offer Status RoHS:Compliant

REACH: Contains No SVHCs

PEP:Available in Documentation tab

EOLI:Available in Documentation tab
* Features, Package Content and Specifications are subject to
change without prior notification.*
