Case Type |
Middle Tower |
|
---|---|---|
Motherboard Type |
Micro ATX / ATX |
|
Dimensions |
198(W) x 425(H) x 484(D) |
|
Available Color |
Black/White/Black & Green |
|
External 5.25" Drive Bays |
3 |
|
External 3.5" Drive Bays |
1 |
|
Internal 3.5" Drive Bays |
6 |
|
Internal 2.5" Drive Bays |
1 |
|
Expansion Slots |
7 |
|
I/O Panel |
USB 3.0 x 1, USB 2.0 x 1 |
|
MIC x 1, Audio x 1 |
||
Screw-less |
5.25" Screw-less Mechanism |
2 |
3.5" Screw-less Mechanism |
1 |
|
HDD Screw-less Mechanism |
2 |
|
Cooling |
|
Max installed: 8pcs fans |
Front |
120mm Fan x 2 or 140mm Fan x 1 |
|
Top |
120mm Fan x 2 |
|
Rear |
120mm Fan x 1 |
|
Bottom |
120mm Fan x 1 |
|
Left side |
120mm Fan x 2 |
|
Bottom Fan Filter |
2 |
|
Rear Water Cooling Hole |
2 |
|

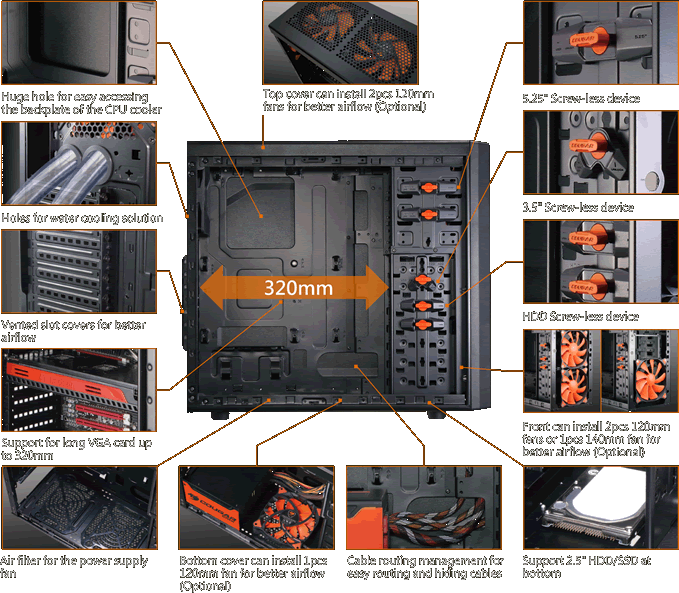

Maximum VGA Length |
320mm |
