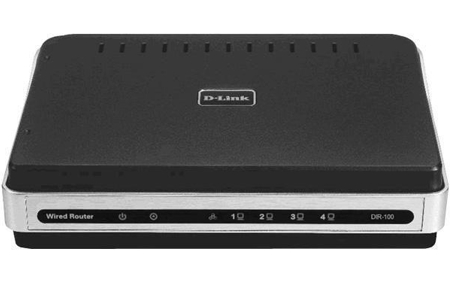

D-Link 4-port Broadband Router

• 10/100BASE-TX Ethernet port
• Supports DSL and cable modem connection
• Supports “Always-on” (bridged) and PPPoE for PPP connection on demand

LAN Interfaces

• 4 10/100BASE-TX Ethernet ports
• Support auto MDI/MDIX
• Support 802.3x flow control (fullduplex)
• and back pressure (halfduplex)

• PPTP pass-through
• IPSec pass-through
• L2TP pass-through

• Network Address Translation (NAT)
• DHCP server (for automatic IP assignment)

• MAC address filtering
• IP address filtering
• Scheduling

• NAT (Network Address Translation) with VPN pass-through
• SPI (Stateful Packet Inspection)
• DoS (Denial of Service) attack prevention

• URL filtering

• Prioritized transmission/reception for

• Multicast stream IGMP (Internet Group Management Protocol)

• Quick Installation Wizard
• Web-based using Internet Explorer v.6 or Netscape Navigator v.7 or other

• Dynamic Domain Name System (DDNS)
• Universal Plug and Play (UPnP) compliant
• Network Time Protocol (NTP) support

HTTP (through web browser)

Diagnostic LEDs

• Power/Status
• WAN (Link/Activity)
• 1, 2, 3, 4 LAN ports (Link/Activity)

Power Input

• DC 5V 1.2A
• Through external power adapter

Dimensions
148 x 114 x 32 mm
Weight
228 grams
Operating Temperature
0˚ to 55˚C
Storage Temperature
-25˚ to 55˚C
Operating Humidity
5% to 95 % non-condensing
Storage Humidity
5% to 95% non-condensing
EMI Certification

• FCC Class B
• CE C-Tick
