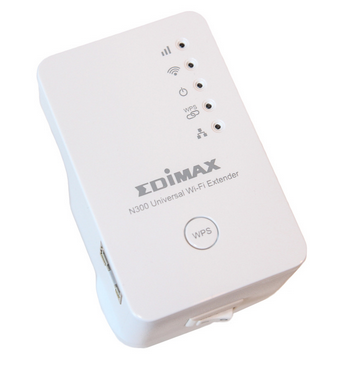

Edimsx EW-7438RPN

FREQUENCY BAND

WIRELESS STANDARDS & DATA RATES

HARDWARE INTERFACE

•2.4GHz

•IEEE 802.11n (up to 300Mbps)
•IEEE 802.11g (up to 54Mbps)
•IEEE 802.11b (up to 11Mbps)

•10/100Mbps Ethernet LAN port
•WPS button
•Power switch
•LEDs: Signal strength, wireless, power, WPS, LAN

MANAGEMENT

SECURITY

SYSTEM REQUIREMENTS

•14-language user interface
•Upgradable firmware

•64/128-bit WEP encryption and WPA-PSK, WPA2-PSK security
•802.1x authentication
•WPS (Wi-Fi Protected Setup)
•User Access control (MAC address)

•Existing wireless home network (2.4GHz) for Wi-Fi extender/Wi-Fi bridge mode, or Cable/DSL modem router for access point mode
•Computer with 2.4GHz b/g/n Wi-Fi capability and web browser for software configuration (Internet Explorer 7 or above, Google Chrome, Firefox or Safari latest version)

INSTALLATION

ANTENNA

POWER ADAPTER

•Multi-language iQ Setup (browser interface)
•Hardware WPS button

•2 x high performance internal antennas

•Built in AC100-240V, 0.16A 50-60Hz power module

HUMIDITY

TEMPERATURE

PACKAGE CONTENTS

•10-90% (Non-condensing)

•0-40℃ (32-104°F)

•EW-7438RPn Wi-Fi extender
•Quick installation guide
•CD with multi-language QIG and user manual
•RJ45 Ethernet cable
•Access key card

DIMENSIONS

DIMENSIONS & WEIGHT

 CERTIFICATIONS

•76 (H) x 47 (W) x 41 (L) mm

•90g (0.2lb)

•FCC, CE, C-tick, SAA, RoHS
