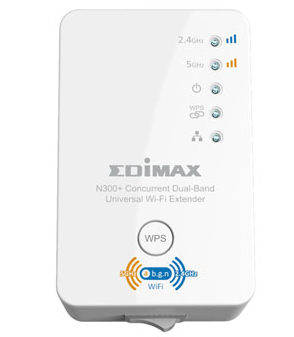

Edimax EW-7238RPD

Frequency Band

Wireless Standards and Data Rates

Hardware Interface

•2.4GHz
•5GHz

•IEEE 802.11n (up to 150Mbps)
•IEEE 802.11a (up to 54Mbps)
•IEEE 802.11g (up to 54Mbps)
•IEEE 802.11b (up to 11Mbps)

•1 x 10/100Mbps Ethernet LAN port
•WPS button
•Power switch
•LEDs: Signal strength, power, WPS, LAN

Management

Security

System Requirements

•12-language user interface
•Upgradable firmware

•64/128-bit WEP encryption and WPA-PSK, WPA2-PSK security
•802.1x authentication
•WPS (Wi-Fi Protected Setup)
•User Access Control

•Existing wireless home network (2.4GHz or 5GHz)
•Computer with Ethernet port and web browser (Internet Explorer 7 or above, or latest version of Google Chrome, Firefox or Safari)

Installation

Humidity & Temperature

Power Adapter

•Multi-language iQ Setup (browser interface)
•Hardware WPS button

•10-90% (Non-condensing)
•0-45°C

•Built-in AC100-240V, 0.16A 50-60Hz power module

Antenna

Dimensions & Weight

 Certifications

•2 x high performance internal antennas

•76 (H) x 47 (W) x 41 (L) mm
•90g (0.2lb)

•CE
•FCC
