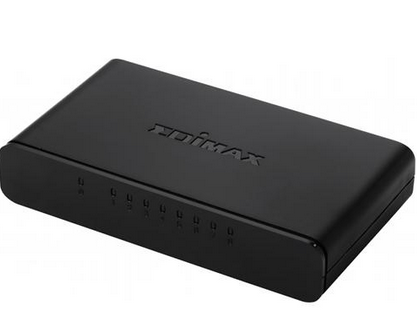

Edimax ES-3308P

Standard

Features

Filtering / Forwarding Rates

•IEEE 802.3 10BASE-T
•IEEE 802.3u 100BASE-TX
•IEEE 802.3x Flow Control
•IEEE 802.3az Energy Efficient Ethernet

•RJ-45 Port: 8
•MAC Address: 1K
•Buffer Memory: 56K
•Transmission Method: Store and Forward

•100Mbps Port – 148,800pps
•10Mbps Port – 14,880pps

Transmission Media

LED Indicators

Power Requirement

•10BASE-T Cat. 3, 4, 5 UTP/STP
•100BASE-TX Cat. 5 UTP/STP

•Per Port: Link/Act
•Per Unit: Power

•DC 5V 0.6A

Power Consumption

Dimensions

Weight

•1.405 Watts (Max)

•137x76x25.5 mm (LxWxH)

•126g

Humidity

Temperature

 Certifications

•Operating: 0 to 40°C
•Storage: -20 to 70°C

•Operating: 10 to 90% RH (Non-condensing)
•Storage: 5 to 90% RH (Non-condensing)

•CE
•FCC Class B
