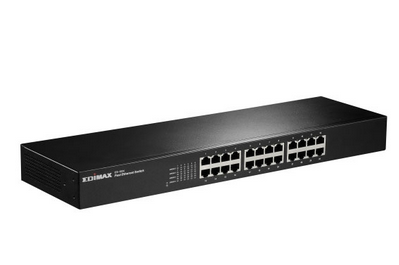

Edimax ES-1024

Standards

Features

Filtering/Forwarding Rates

• RJ-45 Ports: 24
• MAC Address: 8K
• Buffer Memory: 256KB
• Transmission Method: Store and Forward

• 100Mbps port - 148,800pps
• 10Mbps port - 14,880pps

Transmission Media

LED Indicators

Power Requirement

• 10BaseT Cat. 3, 4, 5 UTP/STP
• 100BaseTX Cat. 5 UTP/STP

• Per Port: Link/Act
• Per Unit: Power

• 100 to 240V/AC, 50 to 60Hz

Power Consumption

Dimensions

• 4 Watts (Max)

• 441mm×131mm×44mm (LxWxH)

• 1.7 kg

Temperature

Humidity

CERTIFICATIONS

• Operating: 0 to 40℃
• Storage: -40 to 70℃

• Operating:10 to 90% RH (non-condensing)
• Storage: 5 to 90% RH (non-condensing)

• FCC Class A, CE
