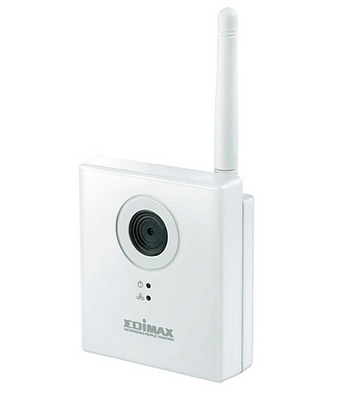

Edimax IC-3115W

Camera

Standards

Interface

•1.3 megapixel CMOS sensor
•1.7mm, f/2.4 (approx. 28mm equiv.)
•View angle: 74.8°

•Fast Ethernet IEEE 802.3/802.3u
•Wireless IEEE 802.11b/g/n

•1 Ethernet (RJ-45) port
•1 Power jack
•1 Reset/WPS button
•1 Fixed antenna (2dBi)

Imaging

RF Output Power

Memory

•Video compression: M-JPEG
•Recording format: AVI
•Image format: JPEG
•SXVGA (1280 x 960) at 30fps
•VGA (640 x 480) at 30fps
•QVGA (320 x 240) at 30fps

•11b: 16dBm - 18dBm
•11g: 14dBm - 16dBm
•11n: 11dBm - 13dBm

•4MB flash
•32MB SDRAM

Management

Frequency Band

Operating Conditions

•EdiView Finder (Windows/Mac)
•16-channel viewer
•Web management interface
•Firmware upgradable
•iPhone & iPad viewer app
•Android phone viewer app

•2.4000-2.4835GHz

•0-40° Celsius
•10-90% (non-condensing)

Power

Dimensions & Weight

 Certifications

•5V DC

•65mm x 80mm x 27mm
•86g

•CE
•FCC
