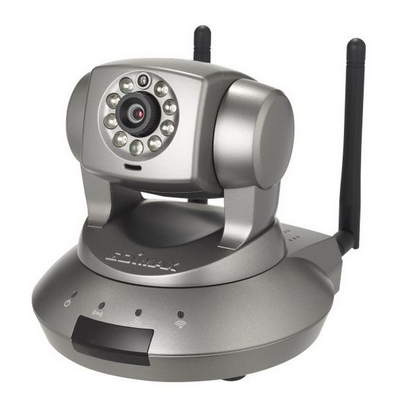

Edimax IC-7110W

• Fast Ethernet IEEE 802.3/802.3u
• Wireless IEEE 802.11b/g/n
• 1 Ethernet (RJ-45) port
• 1 Power jack
• 1 Audio output
• 1 Microphone
• 1 Reset/WPS button
• 1 SDHC/SD card slot (up to 32GB)
• 2 Detachable antennas

• EdiView Finder (Windows/Mac)
• 16-channel viewer
• Web management interface
• Firmware upgradable
• iPhone & iPad viewer app
• Android phone viewer app

DC 12V, 1A

VIDEO / AUDIO

• 1.3 megapixel CMOS sensor
• 1.0 lux
• 3.58mm, f/2.0
• Recording format: AVI
• Video compression:
• H.264, MPEG‐4 & M‐JPEG
• 2-way audio

• 4MB Flash
• 64MB SDRAM

• LAN
• Wireless
• Power / Cloud
• Audio

• 108mm x 112mm x 108mm

• FCC Class B, CE Mark

• 0~40oC
• 10~90% (Non-Condensing)

SYSTEM REQUIREMENT

RF OUTPUT POWER

• CPU: Intel Pentium 4 2.4 GHz above or Intel Dual-Core 2.0GHz
• VGA Card Resolution: 1024 x 768 or above
• One CD-ROM Drive
• Hard Disk: At least 128MB (256MB recommended) of available space
• OS: Windows 2000/XP/Vista/7
• Browser: IE 6.0 or above, FireFox 3.0 or above, Safari 4 or above

• 11b: 16dBm ~ 18dBm
• 11g: 14dBm ~ 16dBm
• 11n: 11dBm ~ 13dBm

• 2.4000~2.4835GHz (Industrial Scientific Medical Band)
