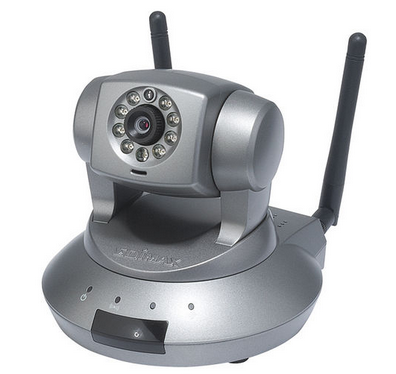

Edimax IC-7010PTN

• Complies with Fast Ethernet IEEE802.3, 802.3u
• Complies with Wireless 802.11b/g/n (IC-7010PTn only)
• Complies with IEEE802.3af PoE standard (IC-7010PoE only)
• 1 x Ethernet (RJ-45) Port
• 1 x Power Jack
• 1 x Audio Output Port
• 1 x Microphone
• 1 x Reset Button/WPS (IC-7010PTn only)
• 1 x SDHC Slot
• 1 x USB Slot for WiFi Dongle (IC-7010PT only)
• 2 x External Detachable Antenna (IC-7010PTn only)

• Provides Admin Utility, 16 Channels Viewer & Web browser management
• Firmware upgradeable

• DC 12V, 1A

• 2-Way Audio input / output
• Triple Mode: H.264, MPEG 4 and Motion-JPEG Image Video
• Recording format – Video (AVI)

• MT9M112 1.3M Pixels CMOS Sensor
• 5 mm, Manual Focus, F=2.8
• 4MB Flash
• 64MB SDRAM

• LAN
• Wireless (IC-7010PT & IC-7010PTn only)
• ACT (IC-7010PoE)
• Power

• 108mm x 112mm x 108mm

• FCC Class B, CE Mark

• 0~40oC
• 10~90% (Non-Condensing)

SYSTEM REQUIREMENT

RF OUTPUT POWER

• CPU: Intel Pentium 4 2.4 GHz above or Intel Dual-Core 2.0GHz
• VGA Card Resolution: 1024 x 768 or above
• One CD-ROM Drive
• Hard Disk: At least 128MB (256MB recommended) of available space
• OS: Windows 2000/XP/Vista/7
• Browser: IE 6.0 or above, FireFox 3.0 or above, Safari 4 or above

• 11b: 16dBm ~ 18dBm
• 11g: 14dBm ~ 16dBm
• 11n: 11dBm ~ 13dBm

• 2.4000~2.4835GHz (Industrial Scientific Medical Band)
