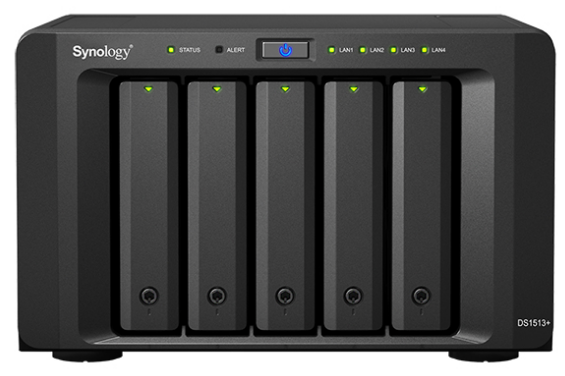

Synology DS1513+
₱40706
Hardware Specifications | |
---|---|
CPU | |
CPU Model | Intel Atom |
CPU Frequency | Dual Core 2.13 GHz |
Floating Point | |
Memory | |
System Memory | 2 GB DDR3 |
Memory Module Pre-installed | 2 GB X 1 |
Total Memory Slots | 2 |
Memory Expandable up to | 4 GB (2 GB X 2) |
Storage | |
Drive Bay(s) | 5 |
Max. Drive Bays with Expansion Unit | 15 |
Compatible Drive Type |
|
Max. Internal Capacity | 25 TB (5 TB HDD X 5) (Capacity may vary by RAID types) (See All Supported HDD) |
Hot Swappable Drive | |
External Ports | |
USB 2.0 Port | 4 |
USB 3.0 Port | 2 |
eSATA Port | 2 |
File System | |
Internal Drives | EXT4 |
External Drives |
|
Appearance | |
Size (Height X Width X Depth) |
157 mm X 248 mm X 233 mm |
Weight |
4.25 kg |
Others | |
LAN Number (RJ45) | Gigabit X 4 |
Link Aggregation | |
Wake on LAN/WAN | |
System Fan | 80 mm X 80 mm X 2 pcs |
Easy Replacement System Fan | |
Wireless Support (dongle) | |
Noise Level |
22.1 dB(A) |
Power Recovery | |
Scheduled Power On/Off | |
Power Supply Unit / Adapter |
200W |
AC Input Power Voltage | 100V to 240V AC |
Power Frequency | 50/60 HZ, Single Phase |
Power Consumption |
51W (Access) 25.75W (HDD Hibernation) |
Temperature | |
Operating Temperature | 5°C to 35°C (40°F to 95°F) |
Storage Temperature | -10°C to 70°C (15°F to 155°F) |
Relative Humidity | 5% to 95% RH |
Maximum Operating Altitude | 6,500 feet |
