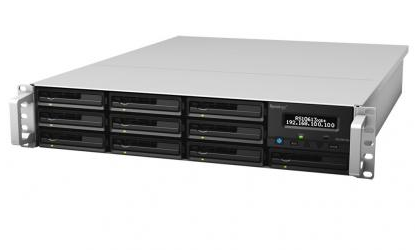

Synology RS10613xs+
₱303529
Hardware Specifications | |
---|---|
CPU | |
CPU Model | Intel Xeon E3 |
CPU Frequency | Quad Core 3.3 GHz |
Floating Point | |
Hardware Encryption Engine | |
Memory | |
System Memory | 8 GB DDR3 ECC |
Memory Module Pre-installed | 4 GB X 2 |
Total Memory Slots | 4 |
Memory Expandable up to | 32 GB (8 GB X 4) |
Storage | |
Drive Bay(s) | 10 |
Max. Drive Bays with Expansion Unit | 106 |
Compatible Drive Type |
|
Dedicated SSD Cache Bays | 2 |
Max. Internal Capacity | 50 TB (5 TB HDD X 10) (Capacity may vary by RAID types) (See All Supported HDD) |
Hot Swappable Drive | |
External Ports | |
USB 2.0 Port | 4 |
Expansion Port | 2 |
File System | |
Internal Drives | EXT4 |
External Drives |
|
Appearance | |
Size (Height X Width X Depth) |
88 mm X 445 mm X 570 mm |
Weight |
15.7 kg |
Others | |
LAN Number (RJ45) | Gigabit X 4 (supports 1 X optional dual-port 10GbE add-on card) (See more) |
Link Aggregation | |
Wake on LAN/WAN | |
System Fan | 80 mm X 80 mm X 4 pcs |
Easy Replacement System Fan | |
Wireless Support (dongle) | |
Noise Level |
54.6 dB(A) |
Power Recovery | |
Scheduled Power On/Off | |
Power Supply Unit / Adapter |
2 X 400W |
AC Input Power Voltage | 100V to 240V AC |
Power Frequency | 50/60 HZ, Single Phase |
Power Consumption |
142W (Access) 110W (HDD Hibernation) |
Redundant Power Supply (for RP model) | |
Temperature | |
Operating Temperature | 5°C to 35°C (40°F to 95°F) |
Storage Temperature | -10°C to 70°C (15°F to 155°F) |
Relative Humidity | 5% to 95% RH |
Maximum Operating Altitude | 6,500 feet |
