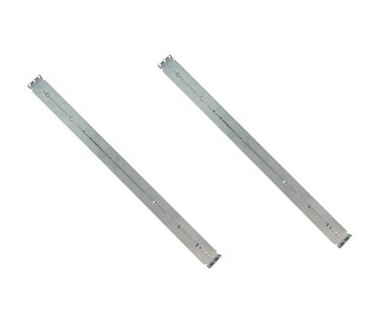

Synology 1U Rail Kit - Fixed

Technical specifications

Physical specifications for Synology RKS1314

• Mount post width must be equal to or greater than 451mm
• Panel width must be equal to or greater than 480mm
• Cabinet depth: 680mm~910mm

Note: Synology RKS1314 requires racks with 3/8” x 3/8” or 9.5mm x 9.5mm square holes for mounting.

Physical specifications for Synology RKM114

• Mount post width must be equal to or greater than 451mm
• Panel width must be equal to or greater than 480mm
• Cabinet depth: 570mm~720 mm
  (for 13-series and earlier 1U models)
  Cabinet depth: 570mm~810mm
  (for 14-series and future 1U models)
