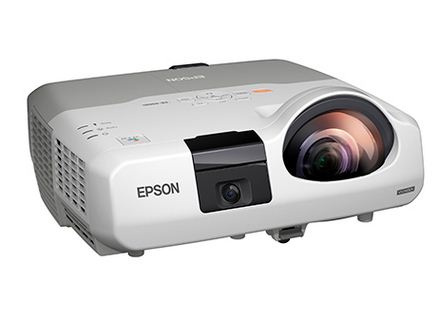

Epson EB-436Wi

MODEL NUMBER EB-436Wi
Projection Technology RGB liquid crystal shutter projection system (3LCD)
Specifications of Main Parts
LCD:
Size
0.59" with MLA (D8)
Native Resolution
WXGA
Projection Lens:
Type
No Optical Zoom / Focus (Manual)
F-Number
1.80
Focal Length
6.48mm
Zoom Ratio
1 - 1.35 (Digital Zoom)
Throw Ratio
0.48 - 0.65 (Wide - Tele)
Lamp
Type
EB-426Wi: 200W UHE (E-TORL)
EB-436Wi: 230W UHE (E-TORL)
Life*¹ (Normal/Eco)
EB-426Wi: 5,000 hours / 6,000 hours
EB-436Wi: 4,000 hours / 5,000 hours
Screen Size (Projected Distance)
Zoom: Wide 53" - 116" [0.54m - 1.22m]
Zoom: Tele 40" - 86" [0.54m - 1.22m]
Standard Size 93" screen 0.97m
Brightness*²
White Light Output (Normal/Eco) EB-426Wi: 2,500lm / 2,000lm
EB-436Wi: 3,000lm / 2,100lm
Colour Light Output EB-426Wi: 2,500lm
EB-436Wi: 3,000lm
Contrast Ratio 3,000 : 1
Internal Speaker(s)
Sound Output 16W (Monoaural)
Keystone Correction
Vertical / Horizontal ± 7° / ± 5°
Connectivity
Analog Input
D-Sub 15 pin
2 (Blue)
Component
D-sub 15pin (Blue molding) x 2 (in common with Analog RGB connector)
Composite
RCA x 1 (Yellow)
S-Video
Mini DIN x 1
Digital Input
HDMI
1 (HDCP supported)
Output Terminal
D-Sub 15pin
1 (Black)
Audio Input
RCA (White/Red)
1 pair
Stereo Mini-jack
2
Audio Output
Stereo Mini Jack
1
Others
USB Type A
1 (USB Memory / ELPDC06 Document Camera)
USB Type B
1 (USB Display, mouse, K/B, Interactive)
Microphone Input
Stereo mini-jack x 1
Control I/O
RS-232C
D-sub 9pin x 1
Network
Wired LAN
RJ45 x 1 (10/100 Mbps)
Wireless
Optional (ELPAP07)
Wireless Specifications
Supported Speed For Each Mode
IEEE 802.11b: 11 Mbps³
IEEE 802.11g: 54 Mbps³
IEEE 802.11n: 130 Mbps³
Wireless LAN Security
WEP, WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES)
Operating Temperature 5 °C to 35 °C <41 °F to 95 °F> (20% - 80% humidity, unfrozen)
Operating Altitude 0m to 2,286m <0ft to 7,500ft> (over 1,500m / 4,921ft: with high altitude mode)
Direct Power On / Off Yes / Yes
Start-Up Period Less than 7 seconds, Warm-up period: 30 seconds
Cool Down Period Instant off
Air Filter
Type
Electrostatic Filter
Maintenance Cycle
5,000H*4
Power Supply Voltage
100V - 240V AC ±10%, 50Hz / 60Hz
Power Consumption (220 - 240V)
Lamp On (Normal / Eco)
EB-426Wi: 292W / 246W
EB-436Wi: 327W / 244W
Stand By (Network On / Off)
EB-426Wi: 6.8W / 0.39W
EB-436Wi: 7.3W / 0.37W
Dimension Excluding Feet
(W x H x D) 345mm x 105mm x 300mm
Weight EB-426Wi: 3.9kg
EB-436Wi: 4.1kg
Fan Noise (Normal / Eco) EB-426Wi: 35dB / 28dB
EB-436Wi: 37dB / 29dB
Interactive Specification
Basic Specification
Technology
Infrared
Input Devices
Digital Pen (Easy Interactive Pen 1 and 2)
Connection to PC
USB, Network
Calibration
Auto / Manual (25points)
Functions
Hover, Right click, Auto Adjust Pen Area
Computer Interactive
Driver Installation
Windows, Linux*5: No Installation required
Mac OS X: Installation required
Multi-Pen Support
Yes (with Easy Interactive Tools Ver.2.10)
Up to 2 types of pens (Easy Interactive Pen 1 and 2)
Instant Annotation (PC-Less)
Multi-Pen Support
Yes. Up to 2 types of pens. (Easy Interactive Pen 1 and 2)
Whiteboard Function
Yes
