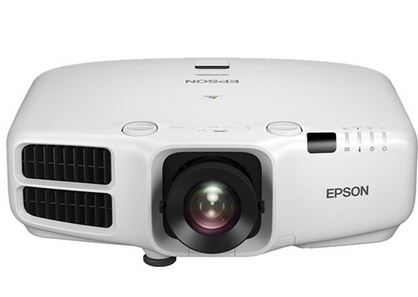

Epson EB-G6150
₱190000
MODEL NUMBER |
EB-G6150 |
---|---|
Projection Technology | RGB liquid crystal shutter projection system (3LCD) |
Specifications of Main Parts | |
LCD: | |
Size |
0.79" wide panel with MLA (D8, C²Fine) |
Native Resolution |
XGA (1024 x 768) |
Projection Lens: | |
Type |
Optical Zoom (Manual) / Focus (Manual) |
F-Number |
1.65 - 2.55 |
Focal Length |
21.28 - 37.94 mm |
Zoom Ratio |
1 - 1.8 |
Throw Ratio |
1.29 - 2.35 (Wide - Tele) |
Lens Exchange |
Yes (6 Optional Lenses) |
Lens Shift |
Mode: Manual (with Lens Shift Lock) Vertical (Up/Down): -57% to +57% (H Center) (Manual) Horizontal (Left/Right): -30% to +30% (H Center) (Manual) |
Lamp | |
Type |
380W UHE |
Life*¹ (Normal/Eco) |
2,500 hours / 4,000 hours |
Screen Size (Projected Distance) | |
Zoom: Wide | 50" - 300" [1.30 - 8.04 m] |
Zoom: Tele | 50" - 300" [2.38 - 14.47 m] |
Standard Size | 100" screen 2.65 - 4.79 m |
Brightness*² | |
White Light Output (Normal/Eco) | 6,500lm / 4,940lm |
Colour Light Output | 6,500lm |
Contrast Ratio | 5,000 : 1 |
Internal Speaker(s) | |
Sound Output | 10W (Monoaural) |
Keystone Correction | |
Vertical / Horizontal | ± 30° / ± 30° (Zoom: Tele) (With Standard Lens) |
Connectivity | |
Analog Input | |
D-Sub 15 pin |
1 (Blue) |
5BNC |
1 |
Component |
5BNC, D-sub 15pin x 1 (Blue) (common with Analog RGB connector) |
Composite |
RCA x 1 (Yellow) |
S-Video |
1 Mini DIN |
Digital Input | |
HDMI |
1 (HDCP supported) |
Display Port |
1 |
Output Terminal | |
D-Sub 15pin |
1 (Black) |
Audio Input | |
RCA (White/Red) |
1 Pair |
Stereo Mini Jack |
3 |
Audio Output | |
Stereo Mini Jack |
1 |
Others | |
USB Type B |
1 Mini USB (For Service Only) |
Control I/O | |
RS-232C |
D-sub 9pin x 1 |
Remote Control Input |
Stereo Mini-jack x 1 |
Network | |
Wired LAN |
RJ45 x 1 (10/100Mbps) |
Wireless |
Optional (ELPAP07) |
Wireless Specifications | |
Supported Speed For Each Mode |
IEEE 802.11b: 11 Mbps*³ , IEEE 802.11g: 54 Mbps*³ , IEEE 802.11n: 130 Mbps*³ |
Wireless Lan Security |
Quick Mode: OPEN, WPA2-PSK Advanced Mode: OPEN, WPA/WPA2-PSK, WPA/WPA2-EAP Supported EAP Type: PEAP/PEAP-TLS/EAP-TLS/EAP-Fast/LEAP |
Operating Temperature |
0°C to 45°C <32°F to 113°F> (20% - 80% humidity, unfrozen) Thermal Shut Down -> Normal 45°C (113°F), ECO & Temp Interlock 50°C (122°F) |
Operating Altitude | 0 - 3,048 m <0 - 10,000 ft> (over 1,500m / 4,921ft: with high altitude mode) |
Direct Power On / Off | Yes |
Start-Up Period | About 15 seconds, Warm-up Period: 30 seconds |
Cool Down Period | Instant off or 0 second |
Air Filter | |
Type |
High Efficiency Filter |
Maintenance Cycle |
10,000 hours*4 |
Power Supply Voltage | 100V - 240V AC ±10%, 50Hz / 60Hz |
Power Consumption (220 - 240V) | |
Lamp On (Normal / Eco) |
504W / 405W |
Stand By (Network On / Off) |
3.3W / 0.41W |
Dimension Excluding Feet (D x W x H) | 382 x 505 x 144 mm (not including projection lens) |
Weight | 9.7kg |
Fan Noise (Normal / Eco) | 37dB / 31dB |
