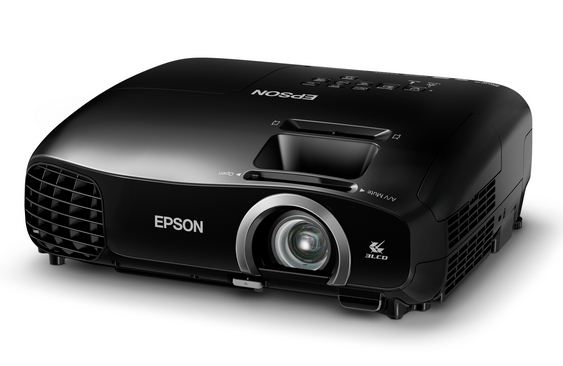

Epson EH-TW8200(New!)
₱154200
Categories
- Camera
- CCTV
- Desktop
- Chassis
- CPU Cooler
- CPU Fan
- Graphics Card
- Harddrives Storage
- Headset & Speakers
- Ink Cartridge & Toner
- Keyboard
- Laptops
- Memory
- Mobile Phone
- Monitors
- MotherBoard
- Mouse Pointer
- Optical Drive
- Peripherals
- Power Supply
- Processors
- Routers & Switches
- Projectors
- Printers & Scanner
- Software
- Sound Card
- Tablets
- UPS
- Webcam
Cart
product
(empty)
| MODEL NUMBER | EH-TW8200 |
|---|---|
| Projection Technology | RGB liquid crystal shutter projection system (3LCD) |
| Specifications of Main Parts | |
| LCD: | |
Size |
0.74" wide panel with MLA (D9, C2Fine, 12 bit, OD) |
Native Resolution |
1080p (1920 x 1080) |
| Projection Lens: | |
Type |
Optical zoom (Manual) / Focus (Manual) |
F-Number |
2.3 - 3.6 |
Focal Length |
22.5mm - 47.2mm |
Zoom Ratio |
1 - 2.1 |
Throw Ratio |
1.34 - 2.87 (Wide - Tele) |
| Lens Shift | |
Mode |
Manual |
Vertical (Up/Down) |
±96.3% (H Center, Manual) |
Horizontal (Left/Right) |
±47.1% (V Center, Manual) |
| Lamp |
|
Type |
230W UHE |
Life (Normal/Eco)*¹ |
4,000 hours / 5,000 hours |
| Screen Size (Projected Distance) | |
| Zoom Wide | 30" to 300" [0.87 to 9.03m] |
| Zoom Tele | 30" to 300" [1.88 to 19.15m] |
| Brightness*² | |
| White Light Output (Normal) | 2,400lm |
| Colour Light Output (Normal) | 2,400lm |
| Contrast Ratio | |
| Auto Iris: On | 600,000:1 |
| Video Quality | Interlace-Progressive conversion, 3D Y/C separation, Noise reduction |
| Supported Video Signal |
480i / 576i / 480p / 576p / 720p / 1080i / 1080p NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM |
| Colour Mode | Dynamic, Living room, Natural, Cinema, 3D Dynamic, 3D Cinema |
| Keystone Correction | |
| Vertical | ± 30° |
| Connectivity | |
| Analog Input | |
D-Sub 15 pin |
1 (Blue) |
| Video Input | |
Component |
RCA x 3 (Red/Green/Blue) |
Composite |
RCA x 1 Yellow) |
| Digital Input | |
HDMI |
2 (HDCP Supported) DeepColour, CEC, 3D |
| Others | |
USB Type B |
1 mini-USB (For service only) |
| Control I/O | |
RS-232C |
D-sub 9pin x 1 |
Trigger-Out (12V) |
3.5mm mini-jack x 1 |
| Adjustment Functions | |
| Six Axis Colour Adjustment | Hue / Saturation / Brightness for each of RGBCMY are adjustable |
| Frame Interpolation | High / Normal / Low / Off (2D and 3D Modes) |
| Super Resolution | 0 / 1 / 2 / 3 / 4 / 5 (2D and 3D modes) |
| Aspect Mode | Auto / Normal / Full / Zoom |
| 3D Features | |
| 3D Display | On / Off |
| 2D - 3D Conversion | Off / Weak / Medium / Strong |
| 3D Format | Auto / Side by Side / Top & Bottom / 2D |
| 3D Depth | ±10 The default value of 3D depth can be automatically set when a user enters the screen size. |
| Operating Temperature | 5°C to 35°C <41°F to 95°F> |
| Operating Altitude | 0m to 2,286m <0ft to 7500ft> |
| Direct Power On/Off | Yes / N.A. |
| Start Up Period |
20 seconds Warm-up Period: 30 seconds |
| Cool Down Period | 16 seconds |
| Power Supply Voltage | 100 - 240 V AC ±10%, 50/60 Hz |
| Power Comsumption (220-240V) | |
Lamp On (Normal/Eco) |
334W / 270W |
Standby (HDMI Link On/Off) |
0.39W / 0.39W |
| Dimension Excluding Feet (W x H x D) | 466mm x 140mm x 395mm |
| Weight | 8.4kg |
| Fan Noise | 22dB |
