BR1601-8CW214H Specification
| BR1601-8CW214H Specifications | |
| Model No. | BR1601-8CW214H |

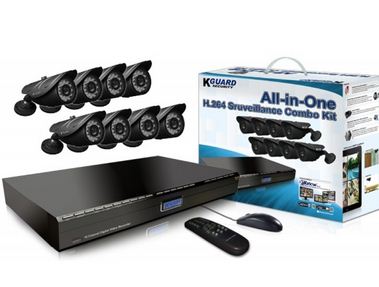

| Product Name | 16CH DVR Kit with 8 CCD Cameras |
| Standalone DVR Specifications | |
| Model | BR1601 |
| Video Format | NTSC / PAL |
| Operating System | LINUX |
| Video | |
| Input / Output | 16 BNC Inputs /1 HDMI Output, 1 VGA Outpu, 2 BNC Outputs |
| Video Compression | H.264 |
| Audio | |
| Input / Output | 16 RCA Inputs / 2 RCA Outputs |
| Display | |
| Resolution | NTSC: 704x480 / PAL: 704x576 |
| Frame Rate | NTSC: 480fps / PAL: 400fps |
| Recording | |
| Resolution | NTSC: CIF(352x240) / HD1(704x240) / D1(704x480) |
| PAL: CIF(352x288) / HD1(704x288) / D1(704x576) | |
| Frame Rate | NTSC: 480fps-CIF / 240fps-HD1 / 120fps-D1 |
| PAL: 400fps-CIF / 200fps-HD1 / 100fps-D1 | |
| Modes | Always / Schedule / Motion Detection / Sensor Triggered / Remote Recording |
| HDD | |
| Interface | 2 SATA Fixed HDD Racks |
| Capacity | Up to 2TB |
| Playback | |
| Search | Time & Date / Event List / Time Bar |
| Channel | Max. 16CH Simultaneous Playback / Network 4CH |
| Mode | Play, Fast Forward, Fast Rewind, Frame by Frame |
| Network | |
| Network Interface | RJ45, 10M/100M, Supports TCP/IP, DHCP,DDNS, PPPoE |
| Network Function | IE and Safari Browser Supported |
| General | |
| USB Interface | USB for Mouse and File Backup |
| PTZ Control | Built-in RS-485 / supports PELCO-P & PELCO-D |
| Sensor & Alarm I/O | 16-Channels Inputs, 1-Channel Output |
| Backup | USB to Flash Drive / Network |
| Power Supply | DC12V / 4A |
| Working Temperature | -10°C ~ 50°C (14°F~122°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F~158°F) |
| Working Humidity | 10%~90% |
| CCTV Camera Specifications | |
| Model No. | CW214H |
| Video | |
| Image Sensor | 1/4" SHARP Color CCD |
| Effective pixels - NTSC | 512(H) x 492(V) |
| Effective pixels - PAL | 500(H) x 582(V) |
| Electronics Shutter NTSC | 1/60-1/120,000(sec) |
| Electronics Shutter PAL | 1/50-1/120,000(sec) |
| Horizontal Resolution | 420 TV Lines |
| Lens | 3.6mm Fixed |
| View Angle | 65 Degrees |
| Video Output | 1.0VP-P,75Ω |
| S/N Ratio | More than 52dB（AGCOFF） |
| Day / Night Mode | Color during day / switches to B&W at night |
| Minimum Illumination | While Infrared LED ON "0" lux |
| Gain Control | Auto |
| Backlight Compensation | Auto |
| Night Vision | |
| Night Vision Distance | Up to 20M / 65ft. |
| Number of Infra-Red LED | 24 pcs |
| Infra-Red Wavelength | 850 mm |
| Infra-Red LED Life | 10,000 hrs |
| General | |
| Indoor / Outdoor | Weatherproof(Both) |
| Operating Temperature | -10° ~ 50°C (14°F~122°F) |
| Storage Temperature | -20° ~ 70°C (-4°F~158°F) |
| Camera Dimension | L179xW65xH63 |
| Body Construction | Aluminum |
