KGuard TC401-4HW227A

TC401-4HW227A Specifications
Model No. TC401-4HW227A

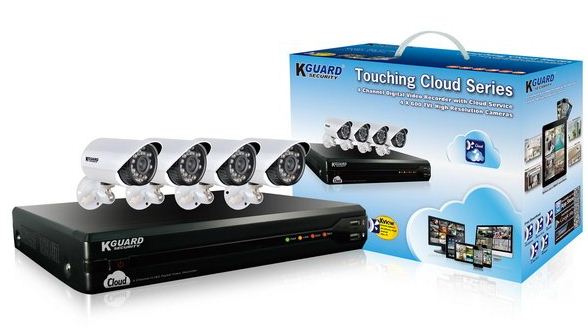

Product Name 4CH Cloud DVR with 4 X 600TVL Cameras
Standalone DVR Specifications
Model TC401
Cloud
Cloud Storage Yes
Storage Mode Schedule / Motion Detection
Video
Video Format NTSC / PAL
Video Input 4 BNC inputs
Video Output 1 VGA output, 1 BNC output
Display Frame Rate NTSC: 120 fps / PAL: 100 fps
Audio
Audio Input 4 RCA inputs
Audio Output 1 RCA output
Recording
Video Compression H.264
Recording Resolution NTSC: CIF(352x240),
HD1(704x240), D1(704x480)
PAL: CIF(352x288), HD1(704x288), D1(704x576)
Recording Frame Rate NTSC: 120fps@CIF,
120fps@HD1, 120fps@D1
PAL: 100fps@CIF, 100fps@HD1, 100fps@D1
Recording Mode Always / Schedule / Motion detection
/ Remote Recording
Recording Pack Time 15 / 30 / 45 / 60mins
HDD Interface SATA (supports up to 2TB)
Network
Network Interface RJ45, 10M/100M
Network Protocol TCP/IP, DHCP, DDNS, PPPoE
Playback
Local Playback 4 channels simultaneously
Playback Search Date / Time / File list
Playback Mode PLAY / FWD / Fast / Rewind / Frame by Frame
General
PTZ Control RS485 built-in, supports PELCO-P & PELCO-D
Alarm Mode Motion Detection / Video Loss / HDD Loss / HDD Full
Backup Method USB flash disk / USB HDD disk / Network
Power Supply DC 12V/2A
Operating Temperature (W/O HDD) -10℃ to 50℃ ( 14°F to 122°F )
Dimension (WxDxH) 274*214.5*45mm
CCTV Camera Specifications
Model No. HW227A
Video
Image Sensor KGUARD Fulcolor
Pixels 728(H) x 560(V)
Electronics Shutter NTSC 1/60-1/100,000(sec)
PAL 1/50-1/100,000(sec)
Horizontal Resolution 600 TVL
Lens 6mm Fixed
Viewing Angle 40 Degrees
Video Output 1.0VP-P, 75Ω
S/N Ratio More than 48dB（AGC OFF）
Day / Night Mode Color during day / switches to B&W at night
Minimum Illumination While Infrared LED ON "0" lux
Gain Control Auto
Backlight Compensation Auto
Night Vision
Night Vision Distance 20m / 65ft
Illumination Infrared LED
Infra-Red Wavelength 850nm
Infra-Red LED Life 10,000hrs
General
Indoor / Outdoor Weatherproof (Both)
Operating Temperature -10°C~50°C (14°F~122°F)
Storage Temperature -20°C~70°C (-4°F~158°F)
Body Construction Aluminum
"Dimensions - Camera with Stand (WxDxH)" 95x58x138mm
Weight - Camera with Stand 295g / 0.65lbs
