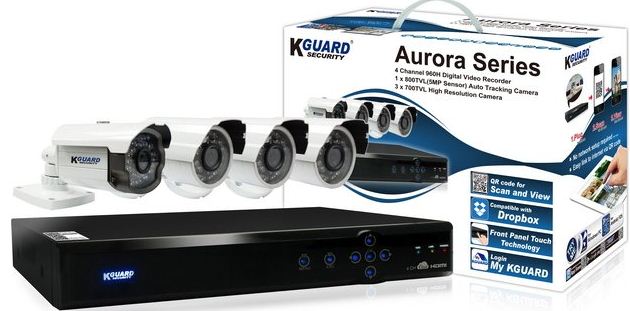

KGuard AR421-CKT001

AR421-CKT001 Specifications
Model No.
AR421
No. of Channel 4 Channels
Cloud
Cloud Storage Yes
Storage Mode Schedule / Motion Detection
Video
Video Format NTSC / PAL
Video Input 4 BNC Inputs
Video Output 1 VGA, 1 BNC, 1 HDMI Outputs
Video Output Resolution 1024x768, 1280x1024, 1366x768, 1440x900, 720p, 1080p
Audio
Audio Input 4 RCA Inputs
Audio Output 1 RCA Output
Recording
Video Compression H.264
Recording Frame Rate D1 NTSC 120fps@CIF (352×240), 120fps@HD1 (704x240), 120fps@D1 (704x480)
PAL 100fps@CIF (352×288), 100fps@HD1 (704x288), 100fps@D1 (704x576)
960H NTSC 120fps@WCIF (480×240), 120fps@WHD1 (960×240), 120fps@WD1 (960×480)
PAL 100fps@WCIF (480×288), 100fps@WHD1 (960×288), 100fps@WD1 (960×576)
Recording Mode Always / Manual / Motion Detection / Schedule / Alarm
HDD Interface 1 SATA
HDD Support Up to 2TB
Network
Plug & Play Yes
Network Interface RJ45, 10M/100M
Network Type DHCP, PPPoE, Static IP
Playback
Local Playback Max. 4 Channels Simultaneously
Playback Search Time / Channel / Event
Playback Mode Play, Fast Forward, Fast Rewind, Slow Motion, Zoom
General
PTZ Control RS485 Built-In, supports PELCO-P & PELCO-D
E-SATA Port No
Sensor IN & Alarm OUT Port 4-IN, 1-OUT
Backup Method HDD, USB, Network
Power Supply 12V/2A
Operating Temperature (W/O HDD) -10℃ to 55℃ (14°F to 131°F )
Storage Temperature -20℃ to 70℃ ( -4°F to 158°F )
Dimension (LxWxH) in mm 315x230x40
CCTV Camera Specifications
Model Name
HZ213A HW307E
Video
Image Sensor 5M Pixels High Quality CMOS Image Sensor
1/3" SHARP Color CCD
Horizontal Resolution 800TVL 700TVL
Electronics Shutter NTSC 1/60-1/100,000(sec)
NTSC 1/60-1/120,000(sec)
PAL 1/50-1/100,000(sec) PAL 1/50-1/120,000(sec)
Lens 3.6mm Megapixel Fixed 3.6mm
Viewing Angle 75 Degrees to 25 Degrees 75 Degrees
Video Output 1.0VP-P, 75Ω 1.0VP-P, 75Ω
S/N Ratio More than 48dB（AGC OFF） More than 52dB（AGC OFF）
Day / Night Mode Color during day / switches to B&W at night
Color during day / switches to B&W at night
Minimum Illumination While Infrared LED on "0" lux
While Infrared LED on "0" lux
Gain Control Auto Auto
Backlight Compensation Auto Auto
Night Vision
Night Vision Distance 30m / 98ft 20m / 65ft
Illumination Infrared LED Infrared LED
Infra-Red Wavelength 850nm 850nm
Infra-Red LED Life 10,000hrs 10,000hrs
General
WDR Smart WDR No
Auto Tracking Yes No
Indoor / Outdoor Weatherproof (Both) Weatherproof (Both)
Operating Temperature -10~50°C / 14~122°F -10~50°C / 14~122°F
Storage Temperature -20~70°C / -4~158°F -20~70°C / -4~158°F
Body Construction Aluminum Aluminum
"Dimensions - Camera with Stand (WxDxH)" 72x63x167.5mm 164x58x58mm
Weight - Camera with Stand 300g 295g
