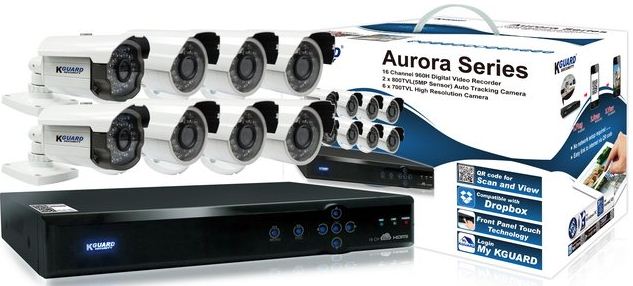

KGuard AR1621-2CKT001

₱29270

Add to cart

₱0tax excl.

(price reduced by 100 %)

Online only!

5 items in stock

Reduced price!
AR1621-2CKT001 Specifications
Model No.
AR1621
No. of Channel 16 Channels
Cloud
Cloud Storage Yes
Storage Mode Schedule / Motion Detection
Video
Video Format NTSC / PAL
Video Input 16 BNC Inputs
Video Output 1 VGA, 1 BNC, 1 HDMI Outputs
Video Output Resolution 1024x768, 1280x1024, 1366x768,
1440x900, 720p, 1080p
Audio
Audio Input 2 RCA Inputs
Audio Output 1 RCA Output
Recording
Video Compression H.264
Recording Frame Rate D1 NTSC 480fps@CIF (360×240),
240fps@HD1 (720x240), 240fps@D1 (720x480)
PAL 400fps@CIF (360×288), 192fps@HD1 (720x288),
192fps@D1 (720x576)
960H NTSC 480fps@WCIF (480×240), 176fps@WHD1
(960×240), 176fps@WD1 (960×480)
PAL 400fps@WCIF (480×288), 144fps@WHD1 (960×288),
144fps@WD1 (960×576)
Recording Mode Always / Manual / Motion Detection /
Schedule / Alarm
HDD Interface 1 SATA
HDD Support Up to 2TB
Network
Plug & Play Yes
Network Interface RJ45, 10M/100M
Network Type DHCP, PPPoE, Static IP
Playback
Local Playback Max. 16 Channels Simultaneously
Playback Search Time / Channel / Event
Playback Mode Play, Fast Forward, Fast Rewind, Slow Motion, Zoom
General
PTZ Control RS485 Built-In, supports PELCO-P & PELCO-D
E-SATA Port Yes
Sensor IN & Alarm OUT Port 4-IN, 1-OUT
Backup Method HDD, USB, Network
Power Supply 12V/2A
Operating Temperature (W/O HDD) -10℃ to 55℃ (14°F to 131°F )
Storage Temperature -20℃ to 70℃ ( -4°F to 158°F )
Working Humidity 10%~90%
CCTV Camera Specifications
Model Name
HZ213A HW307E
Video
Image Sensor 5M Pixels High Quality CMOS Image Sensor
1/3" SHARP Color CCD
Horizontal Resolution 800TVL 700TVL
Electronics Shutter NTSC 1/60-1/100,000(sec)
NTSC 1/60-1/120,000(sec)
PAL 1/50-1/100,000(sec) PAL 1/50-1/120,000(sec)
Lens 3.6mm Megapixel Fixed 3.6mm
Viewing Angle 75 Degrees to 25 Degrees
75 Degrees
Video Output 1.0VP-P, 75Ω 1.0VP-P, 75Ω
S/N Ratio More than 48dB(AGC OFF) More than 52dB(AGC OFF)
Day / Night Mode Color during day / switches to B&W at night
Color during day / switches to B&W at night
Minimum Illumination While Infrared LED on "0" lux
 While Infrared LED on "0" lux
Gain Control Auto Auto
Backlight Compensation Auto Auto
Night Vision
Night Vision Distance 30m / 98ft 20m / 65ft
Illumination Infrared LED Infrared LED
Infra-Red Wavelength 850nm 850nm
Infra-Red LED Life 10,000hrs 10,000hrs
General
WDR Smart WDR No
Auto Tracking Yes No
Indoor / Outdoor Weatherproof (Both) Weatherproof (Both)
Operating Temperature -10~50°C / 14~122°F -10~50°C / 14~122°F
Storage Temperature -20~70°C / -4~158°F -20~70°C / -4~158°F
Body Construction Aluminum Aluminum
"Dimensions - Camera with Stand (WxDxH)" 72x63x167.5mm 164x58x58mm
Weight - Camera with Stand 350g 235g
