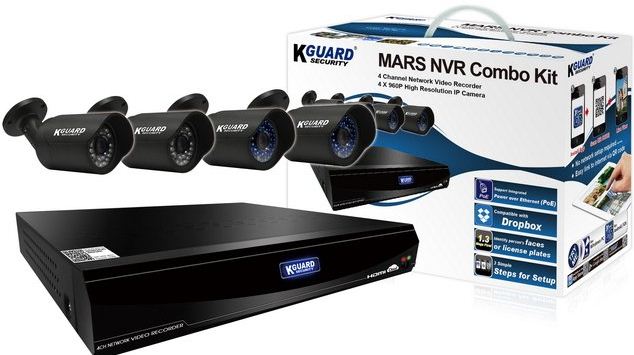

KGuard MR-4040

MR4040 Specifications
Model No.
MR-400
No. of Channel 4 Channels
Cloud
Cloud Storage Yes
Storage Mode Schedule / Motion Detection
Video
Video Input 4 LAN ports
Video Output 1 VGA & 1 HDMI Outputs
Video Output Resolution 800x600, 1024x768,
1280x1024, 1440x900, 1920x1080
Audio
Audio Compression G.711
Audio Output 1 RCA output
Recording
Video Compression H.264
Recording Resolution 4 x 30fps @ 720p
Recording Mode Manual / Always / Schedule /
Motion Detection / Alarm / Remote Recording
HDD Interface 1 SATA
HDD Support Up to 4TB
Network
Network Interface 1 WAN port
Network Protocol DHCP, PPPoE, Static IP
Browser Support IE 8.0 or above & Safari
Playback
Local Playback 4 x 30fps @ 720p
Remote Playback 4 channels simultaneously via broswers
Playback Search Time & Date, Alarm, Motion Detection
Playback Mode Play, Fast Forward, Fast Rewind, Slow,
Zoom
General
IR Extender Port Yes
Sensor IN & Alarm OUT Port 4-IN, 1-OUT
Trigger Event Recording, Alarm Out, E-mail, Buzzer,
Full Screen
Backup Method USB Flash Drive, USB HDD, Network
Power Consumption (W/O HDD) ≤15W
Power Supply DC 19V/4A
Camera Power Supply over PoE Yes
Operating Temperature (W/O HDD) 0℃ to 55℃ ( 32°F to 131°F )
Working Humidity 10%~90%
Dimension (LxWxH) 300×220×47mm
IP Camera Specifications
Model Name
IPB-100 IPB-200
Image Sensor 1/3" Mega Pixel CMOS Sensor with IR Cut Filter
1/3" Mega Pixel CMOS Sensor with IR Cut Filter
Max. Resolution 1280(H) x 960(V) 1280(H) x 960(V)
Lens 3.6mm fixed, F1.2 6mm fixed, F1.2
Viewing Angle 75° 45°
Night Vision 20 meters 30 meters
Minimum Illumination While Infrared LED on "0" lux
While Infrared LED on "0" lux
Day / Night Mode Color during day / switches to B&W at night
Color during day / switches to B&W at night
Electronics Shutter 1/3 ~ 1/10,000 (sec) 1/3 ~ 1/10,000 (sec)
Waterproof IP66 IP66
Operating Temperature -10 °C ~ 60 °C (14°F ~ 140°F) -10 °C ~ 60 °C
(14°F ~ 140°F)
Power Supply 12 VDC ± 10%, PoE 12 VDC ± 10%, PoE
Dimensions 150x63x61mm 150x63x61mm
Weight 420g 420g
