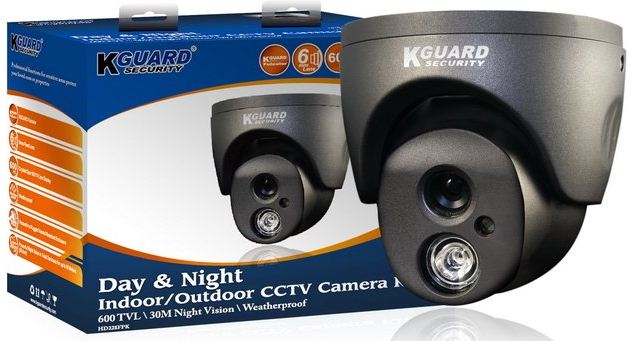

KGuard HD228F

Camera Kit-HD228F Specifications
Model Name HD228F
Video
Image Sensor KGUARD Fulcolor
Pixels 728(H) x 560(V)
Electronics Shutter NTSC 1/60-1/100,000(sec)
PAL 1/50-1/100,000(sec)
Horizontal Resolution 600 TV Lines
Lens 6mm Fixed
Viewing Angle 40 Degrees
Video Output 1.0VP-P,75Ω
S/N Ratio More than 48dB（AGC OFF）
Day / Night Mode Color during day / switches to B&W at night
Minimum Illumination While Infrared LED ON "0" lux
Gain Control Auto
Backlight Compensation Auto
Night Vision
Night Vision Distance 30m/98ft
Illumination Infrared Array
Infra-Red Wavelength 850nm
Infra-Red LED Life 10,000hrs
General
Indoor / Outdoor Weatherproof (Both)
Operating Temperature -10~50°C / 14~122°F
Storage Temperature -20~70°C / -4~158°F
Camera Dimension 95x95x95mm / 3.7x3.7x3.7"
Body Construction Aluminum
Weight - Camera with Stand 345g / 0.76lbs
