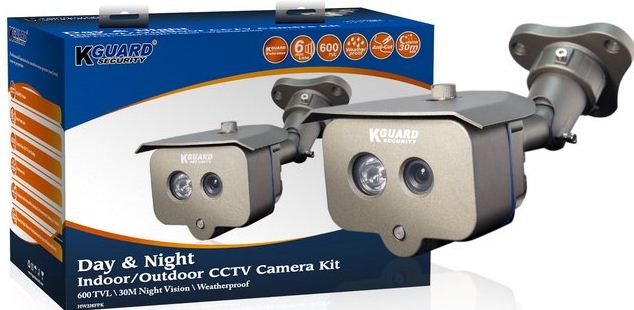

KGuard HW228F

Camera Kit-HW228F Specifications
Model Name HW228F
Video
Image Sensor KGUARD FULCOLOR
Pixels 728(H) x 560(V)
Electronics Shutter NTSC 1/60-1/100,000(sec)
PAL 1/50-1/100,000(sec)
Horizontal Resolution 600 TV Lines
Lens 6mm Fixed
Viewing Angle 40 Degrees
Video Output 1.0VP-P,75Ω
S/N Ratio More than 48dB（AGC OFF）
Day / Night Mode Color during day
switches to B&W at night
Minimum Illumination While Infrared LED ON
"0" lux
Gain Control Auto
Backlight Compensation Auto
Night Vision
Night Vision Distance 30m/98ft
Illumination Infrared Array
Infra-Red Wavelength 850nm
Infra-Red LED Life 10,000hrs
General
Indoor / Outdoor Weatherproof (Both)
Operating Temperature -10~50°C / 14~122°F
Storage Temperature -20~70°C / -4~158°F
Camera Dimension 225x83x100mm / 8.9x3.3x3.9"
Body Construction Aluminum
Weight - Camera with Stand 470g / 1.04lbs
