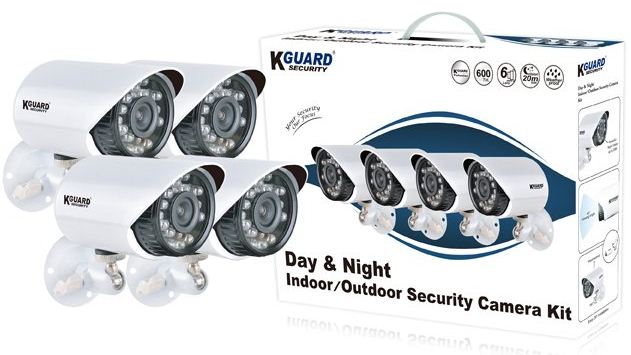

KGuard HW227APK4

HW227A Specifications
Model No. 4HW227A
Video
Image Sensor KGUARD Fulcolor
Pixels 728(H) x 560(V)
Electronics Shutter NTSC 1/60-1/100,000(sec)
PAL 1/50-1/100,000(sec)
Horizontal Resolution 600 TVL
Lens 6mm Fixed
Viewing Angle 40 Degrees
Video Output 1.0VP-P, 75Ω
S/N Ratio More than 48dB（AGC OFF）
Day / Night Mode Color during day
switches to B&W at night
Minimum Illumination While Infrared LED on
"0" lux
Gain Control Auto
Backlight Compensation Auto
Night Vision
Night Vision Distance 20m / 65ft
Illumination Infrared LED
Infra-Red Wavelength 850nm
Infra-Red LED Life 10,000hrs
General
Indoor / Outdoor Weatherproof (Both)
Operating Temperature -10~50°C / 14~122°F
Storage Temperature -20~70°C / -4~158°F
Body Construction Aluminum
"Dimensions - Camera with Stand (WxDxH)" 95x58x138mm
Weight - Camera with Stand 295g / 0.65lbs
