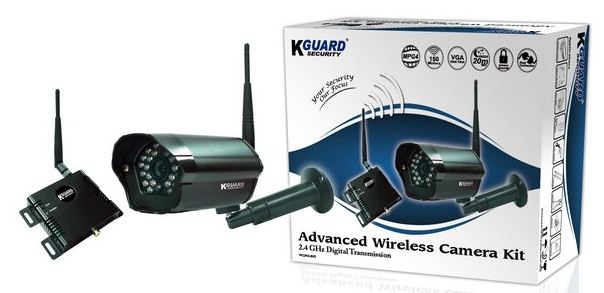

KGuard WLP614M1

Wireless Video Transmitter (WL614MT)
Image Sensor 1/4" CMOS
Horizontal Resolution 420 TV Lines
Video Compression MPEG4
Transmission Mode Digital
Antenna Omni-directional 3dBi
Max. Transmission Range Up to 150 Meters
Frequency 2.4 ~ 2.525GHz FHSS
Frequency Modulation GMSK ( the same with
cell phone frequency modulation tech)
Lens Standard fixed lens 6mm
Viewing Angle 53 degree
Backlight Compensation YES
Shutter Speed 1/60 - 1/15,000 NTSC; 1/50 -
1/15,000 PAL
Number of Infra-Red LED 24pcs Infrared LED
Weatherproof YES
S/N Ratio More than 48dB（AGCOFF）
Minimum Illumination While Infrared LED ON
"0" lux
Sync System Internal Synchronization
Infra-Red Wavelength 850mm
Night Vision Distance 20m / 65ft
Infra-Red LED Life 10,000hrs
Power Consumption When the infrared lamps
turned on, the max electric current is 280mA
Power Source DC 12V / 0.5A for AC Adapter
Operating Temperature -10° ~ 50°C (14°F~122°F)
Storage Temperature -20° ~ 70°C (-4°F~158°F)
Wireless Video Receiver (WLM01R)
Transmission Mode Digital
Antenna Omni-directional 3dBi
Max. Transmission Range Up to 150m / 490ft
Frequency 2.4 ~ 2.525GHz FHSS
Frequency Modulation GMSK ( the same with cell
phone frequency modulation tech)
System of Signal PAL / NTSC
Display Effective Pixels VGA: 640x480@30fps(NTSC);
640x480@25fps(PAL)
QVGA: 320x240@30fps(NTSC); 320x240@25fps(PAL)
Video Output Composite * 1
Transmission Channels 1
Battery Power Option No
Power Consumption The max electric current is 100mA
Power Source DC 12V / 0.5A for AC Adapter
Operating Temperature -10° ~ 50°C (14°F~122°F)
Storage Temperature -20° ~ 70°C (-4°F~158°F)
