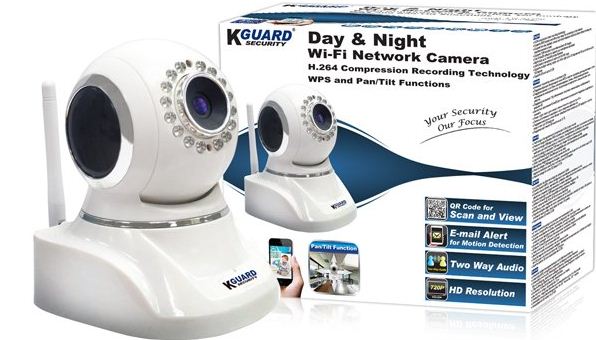

KGuard QRT-301

Wi-Fi Network Camera Specifications
Model QRT-301
Video
Video Compression H.264
Image Frame Rate "1280x720 pixels @30fps
640x368 pixels @30fps 320x208 pixels @30fps"
Day / Night Mode Color during day,
switches to B&W at night
Frame Rate Auto, 1fps ~ 30fps
Maximum Streams 2 Simultaneous Streams
Camera
Image Sensor Mega Pixel Color CMOS sensor
Max. Resolution 1280x720 pixels (1 Mega pixels)
Lens 4.2mm fixed, F2.0
Viewing Angle 70°
Min. Illumination 0.5 Lux
Pan/Tilt Range Horizontal: 320° & Vertical 120°
Night Vision
Night Vision Distance up to 15M / 49ft
Illumination Infread LED
Audio
Audio Input 1 Built-in Microphone & 1 jack for
external microphone
Audio Output 1 Built-in Speaker & 1 jack for
external headset
Compression ADPCM
Network
LAN Interface Ethernet 10/100Mbps, Auto
MDI/MDIX, RJ-45
Network Type Static IP, DHCP, PPPoE
Wireless Interface IEEE 802.11b/g/n
(150Mbps)
ONVIF Support Yes
Plug & Play (P2P) Yes
WPS Yes
General
External Storage SD Card (Capacity supports up to 32G)
Alarm I/O 1 Channel On/Off Input, 1 Channel Relay Output
RS485 N/A
Indoor / Outdoor Indoor
Operating Temperature 0°C ~ 55°C
Operating Humidity 20% ~ 85%, non-condensing
Power Consumption DC 5V/2A
Dimension (LxWxH) 105 x98 x130mm
Weight 365g
System Requirements
Operating System Microsoft Windows 7 / Vista / XP / 2000
Brower "Internet Explorer 6 or above Google Chrome Mozilla Firefox
Mac Safari"
