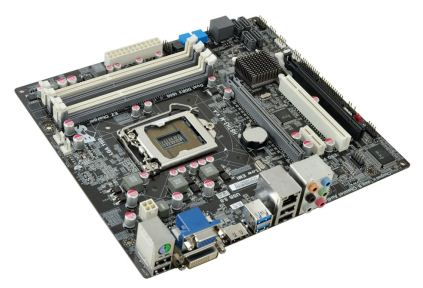

ECS INTEL MB H87H3-M GL V.1.0

CPU º Supports new 4th gen Intel® Core™ family,
Pentium, Celeron series processors in LGA1150 socket
º DMI 5.0GT/s
º 3 Phase Thermal Design Power
º VRD 12.5
º 100% Solid capacitor design
º Supports Intel® Turbo Boost 2.0 Technology
º Supports Intel® Hyper-Threading Technology
º Intel® K Series Unlock CPU Support
º Please refer to CPU support list for details
CHIPSET º Intel® H87 Express Chipset
º Supports Intel® Small Business Advantage
º Intel® Smart Response Technology, Intel® Smart Connect
Technology & Intel® Rapid Start Technolog
º Supports Intel® Identity Protection Technology
GRAPHICS º Support Intel® HD Graphics 4000/4600 (4th gen CPU)
º Supports DirectX® 11 .1
º Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video,
Clear Video HD Technology, Insider™
º Supports HDMI 1.4a & Premium Audio
º Supports ATI® 2-Way CrossFireX™
º Supports Full HD 1080P Blu-ray / HD-DVD Playback
MEMORY º Dual-channel DDR3 Memory architecture
º Supports DDR3 1600 non-ECC, Un-buffered SDRAM Memory
º 4 X 240-pin DDR3 DIMM socket
º Support up to 32 GB*
º * Due to the operation system limitation, the actual
memory size may be less than 4GB for the reservation for
system usage under Windows® 32-bit OS. For Windows® 64-bit
OS with 64-bit CPU, there is no such limitation
º Note: DDR3_1 with DDR3_3 are the same channel, DDR3_2
with DDR3_4 are the same channel by Intel® Specification
EXPANSION SLOT º 1 X PCI Express X16 Gen 3.0 slot(s)
º 1 X PCI Express X16 Gen 2.0 slot(s)
º 1 X PCI Express X 1 Gen 2.0 slot(s)
º Supports ATI® CrossfireX Technology
º 1 X PCI slot(s)
º *The second PCIE X16 only support bandwidth X4
Storage º Support by H87 Express Chipset
    • 6 X Serial ATAIII 6Gb/s
      Located in SATA1, SATA2, SATA3, SATA4, SATA5, SATA6 Port
    • RAID0, RAID1,RAID5, RAID 10 configuration
º Supports Intel® Rapid Storage Technology
Audio º 8-Channel HD audio CODEC
º Realtek ALC892 8-channel High Definition audio CODEC
º Realtek ALC892 8-channel High Definition audio CODEC
º Realtek ALC892
‧Realtek ALC892 8-channel High Definition audio CODEC
‧Compatible with Direct Sound 3D™, A3D™, I3DL2
‧Smart multiple streaming operation
‧Intuitive Configuration Panel (Realtek Audio Manager) to
 enhance user experience
‧7.1+2 channel multi-streaming enables concurrent gaming/VoIP
º BluRay DVD/HD DVD support
LAN º Realtek 8111G Gigabit Fast Ethernet Controller
º Wake-On-LAN
USB º Support by H87 Express Chipset
    • 4 X USB3.0 port(s) up to 5Gb/s
      Back Panel 2 port(s)
      Onboard 2 port(s)
    • 10 X USB2.0 port(s) Up to 480 Mb/s
      Back Panel 4 port(s)
      Onboard 6 port(s)
º ECS EZ Charger (Gray USB header)
REAR PANEL I/O º 1 X PS/2 Keyboard & PS/2 mouse connectors
º 1 X Audio port (Line-in,4x Line-out, Mic in)
º 1 X RJ-45 port
º 1 X HDMI port(s)
º 1 X DVI-I port(s)
º 1 X D-Sub (VGA) port(s)
º 2 X USB3.0 port(s)
º 4 X USB2.0 port(s)
CONNECTORS & HEADERS º 1 X 24-pin ATX Power
Supply connector
º 1 X 4-pin 12V Power connector
º 1 X 4-pin CPU_FAN connector with smart fan
º 1 X 3-pin SYS_FAN connector with smart fan
º 1 X Front Panel switch/LED header
º 1 X Front panel audio header
º 1 X USB 3.0 header
    • Support additional 2 USB ports
º 3 X USB 2.0 header
    • Support additional 6 USB ports
º Support EZ charger (gray color)
º 6 X SATA III 6Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X CIR header
º 1 X Serial port header (COM)
º 1 X Parallel port header (LPT)
º 1 X TPM header
º 1 X Chassis intrusion header
SYSTEM BIOS º AMI BIOS with 64 MB SPI Flash ROM
º Supports M.I.B III Utility
º F7 hot key for boot up devices option
º Triple Display
º Support ECS EZ BIOS
º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Multi-Language BIOS
º Audio, LAN, can be disabled in BIOS
º Dual-Monitor function
FORM FACTOR º mATX Form Factor
º 244mm(W) X 220 mm(H)
OS Support º Windows 7 32-bit
º Windows 7 64-bit
º Windows 8 64-bit
Certifications º CE/FCC Certification
º ErP/EuP Certification
º WHCK Certification
Bundled Software º ECS Intelligent EZ Utility :
 eBLU, eDLU, eSF
º Free Bundle: Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector
9, Muzee with trial version
