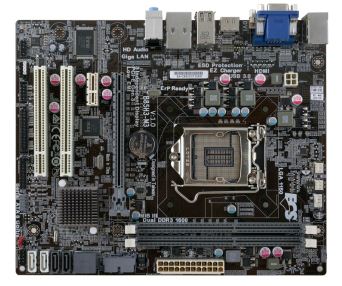

ECS INTEL MB B85H3-M GL V1.0

CPU º Supports new 4th gen Intel® Core™ family,
Pentium, Celeron series processors in LGA1150 socket
º DMI 5.0GT/s
º 3 Phase Thermal Design Power
º VRD 12.5
º Solid Capacitor for CPU side
º Supports Intel® Turbo Boost 2.0 Technology
º Supports Intel® Hyper-Threading Technology
º Intel® K Series Unlock CPU Support
º Please refer to CPU support list for details
CHIPSET º Intel® B85 Express Chipset
º Supports Intel® Small Business Advantage
GRAPHICS º Support Intel® HD Graphics 4600
º Supports DirectX® 11 .1
º Supports Intel® HD Graphics, InTru™ 3D, Quick Sync
Video, Clear Video HD Technology, Insider™
º Supports HDMI 1.4a & Premium Audio
º Supports Full HD 1080P Blu-ray / HD-DVD Playback
MEMORY º Dual-channel DDR3 Memory architecture
º Supports DDR3 1600 non-ECC, Un-buffered SDRAM Memory
º 2 X 240-pin DDR3 DIMM socket
º Support up to 16 GB*
º * Due to the operation system limitation, the actual
memory size may be less than 4GB for the reservation for
system usage under Windows® 32-bit OS. For Windows® 64-bit
OS with 64-bit CPU, there is no such limitation
EXPANSION SLOT º 1 X PCI Express X16 Gen 3.0 slot(s)
º 1 X PCI Express X 1 Gen 2.0 slot(s)
º 2 X PCI slot(s)
Storage º Support by B85 Express Chipset
    • 4 X Serial ATAIII 6Gb/s
    • 2 X Serial ATAII 3Gb/s
Audio º 6-Channel HD audio CODEC
º Realtek ALC662 6-channel High Definition audio CODEC
º BluRay DVD/HD DVD support
LAN º Realtek 8111G Gigabit Fast Ethernet Controller
º Wake-On-LAN
USB º Support by B85 Express Chipset
    • 4 X USB3.0 port(s) up to 5Gb/s
      Back Panel 2 port(s)
      Onboard 2 port(s)
    • 8 X USB2.0 port(s) Up to 480 Mb/s
      Back Panel 6 port(s)
      Onboard 2 port(s)
REAR PANEL I/O º 1 X PS/2 Keyboard & PS/2 mouse connectors
º 1 X Audio port (Line Out/Line In/Mic In)
º 1 X RJ-45 port
º 1 X HDMI port(s)
º 1 X DVI-D port(s)
º 1 X D-Sub (VGA) port(s)
º 2 X USB3.0 port(s)
º 6 X USB2.0 port(s)
CONNECTORS & HEADERS º 1 X 24-pin ATX Power Supply connector
º 1 X 4-pin 12V Power connector
º 1 X 4-pin CPU_FAN connector with smart fan
º 1 X 3-pin SYS_FAN connector with smart fan
º 1 X 3-pin PWR_FAN connector
º 1 X Front Panel switch/LED header
º 1 X Front panel audio header
º 1 X Speaker header
º 1 X USB 3.0 header
    • Support additional 2 USB ports
º 1 X USB 2.0 header
    • Support additional 2 USB ports
º Support EZ charger (gray color)
º 1 X S/PDIF out header
º 4 X SATA III 6Gb/s connector(s)
º 2 X SATA II 3Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X CIR header
º 1 X Serial port header (COM)
º 1 X Parallel port header (LPT)
º 1 X TPM header
º 1 X Chassis intrusion header
SYSTEM BIOS º AMI BIOS with 64 MB SPI Flash ROM
º Supports M.I.B III Utility
º Supports ACPI 5.0 & DMI
º F7 hot key for boot up devices option
º Triple Display
º Support ECS EZ BIOS
º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Multi-Language BIOS
º Audio, LAN, can be disabled in BIOS
º Dual-Monitor function
FORM FACTOR º mATX Form Factor
º 244mm(W) X 200 mm(H)
OS Support º Windows 7 32-bit
º Windows 7 64-bit
º Windows 8 64-bit
Certifications º CE/FCC Certification
º ErP/EuP Certification
º WHCK Certification
Bundled Software º ECS Intelligent EZ Utility :
eBLU, eDLU, eSF
º Free Bundle: Norton Internet Security ,CyberLink
PowerDVD, CyberLink PowerDirector 9, Muzee with trial version
