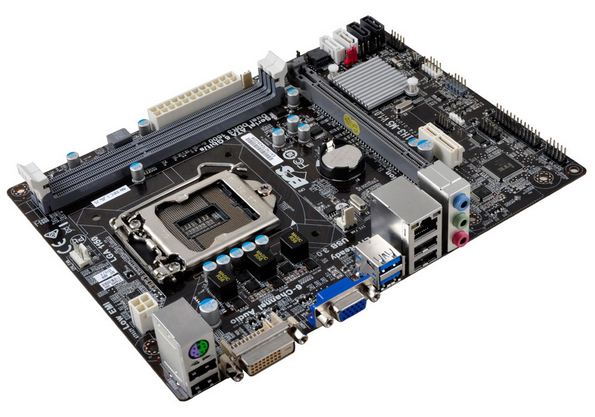

ECS INTEL MB H81H3-M5 GL V1.0 (all solid caps)

CPU º Supports new 4th gen Intel® Core™ family, Pentium,
Celeron series processors in LGA1150 socket
º DMI 5.0GT/s
º 3 Phase Thermal Design Power
º VRD 12.5
º 100% Solid capacitor design
º Supports Intel® Turbo Boost 2.0 Technology
º Please refer to CPU support list for details
CHIPSET º Intel® H81 Express Chipset
GRAPHICS º Supports DirectX® 11 .1
MEMORY º Dual-channel DDR3 Memory architecture
º Supports 1600 non-ECC, Un-buffered SDRAM Memory
º 2 X 240-pin DDR3 DIMM socket
º Support up to 16 GB*
º Note:Please refer to the latest Memory support list for details
EXPANSION SLOT º 1 X PCI Express X16 Gen 2.0 slot(s)
º 1 X PCI Express X 1 Gen 2.0slot(s)
Storage º Support by Intel® H81 Express Chipset
    • 2 X Serial ATAIII 6Gb/s
    • 2 X Serial ATAII 3Gb/s
Audio º 6-Channel HD audio CODEC
º Realtek ALC662 6-channel High Definition audio CODEC
º Realtek ALC662
‧Realtek ALC662 6-channel High Definition audio CODEC
‧Meets performance requirements for Microsoft WLP 3.08
 Vista premium and mobile PCs
‧Six channel DAC supports 16/20/24-bit PCM format for
5.1 channel audio solution
‧Emulation of 26 sound environments to enhance gaming
experience
‧Voice Cancellation and Key Shifting in Karaoke mode
‧Compatible with Direct Sound 3D™, A3D™, I3DL2
LAN º Realtek 8111G Gigabit Fast Ethernet Controller
º Wake-On-LAN
USB º Support by H81 Express Chipset
    • 2 X USB3.0 port(s) up to 5Gb/s
      Back Panel 2 port(s)
    • 8 X USB2.0 port(s) Up to 480 Mb/s
      Back Panel 4 port(s)
      Onboard 4 port(s)
º ECS EZ Charger (Gray USB header)
REAR PANEL I/O º 1 X PS/2 combo connector
º 1 X Audio port (Line Out/Line In/Mic In)
º 1 X RJ-45 port
º 1 X D-Sub (VGA) port(s)
º 1 X DVI port(s) (HDMI port(s), optional)
º 1 X Coxal S/PDIF Out port (s)
º 2 X USB3.0 port(s)
º 4 X USB2.0 port(s)
CONNECTORS & HEADERS º 1 X 24-pin ATX Power
 Supply connector
º 1 X 4-pin 12V Power connector
º 1 X 4-pin CPU_FAN connector
º 1 X 3-pin SYS_FAN connector with smart fan
º 1 X 3-pin PWR_FAN connector
º 1 X Front panel audio header
º 1 X Speaker header
º 2 X USB 2.0 header
    • Support additional 4 USB ports
º Support EZ charger (gray color)
º 1 X S/PDIF out header
º 2 X SATA III 6Gb/s connector(s)
º 2 X SATA II 3Gb/s connector(s)
º 1 X Serial port header (COM)
º 1 X Parallel port header (LPT)
SYSTEM BIOS º AMI BIOS with 64 MB SPI Flash ROM
º Supports M.I.B III Utility
º Supports ACPI 5.0 & DMI
º F7 hot key for boot up devices option
º Dual Display
º Support ECS EZ BIOS
º Multi-Language BIOS
FORM FACTOR º mATX Form Factor
º 230 x 170mm
OS Support º Windows 7 32-bit
º Windows 7 64-bit
º Windows 8 64-bit
Certifications º CE/FCC Certification
º ErP/EuP Certification
º WHQL Certification
º WHCK Certification
Bundled Software º ECS Intelligent EZ Utility :
eBLU, eDLU, eSF
º Free Bundle: Norton Internet Security ,CyberLink PowerDVD,
CyberLink PowerDirector 9, Muzee with trial version
