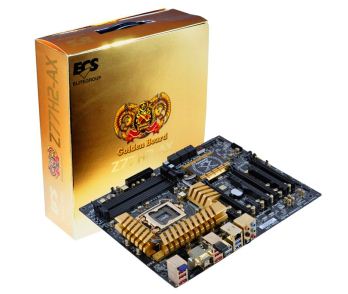

ECS INTEL MB Z77H2-AX GL V1.0 GOLDEN

CPU º LGA1155 socket for new 2nd & 3rd Generation Intel®
Core™ Family/ Pentium® /Celeron® Processors
º DMI 5.0GT/s
CHIPSET º Intel® Z77 Express Chipset
MEMORY º Dual-channel DDR3 memory architecture
º 4 x 240-pin DDR3 DIMM socket support up to 32 GB
º Support DDR3 up to 2800(OC)/2600(OC)/2400(OC)
/2133(OC)/1800(OC)/1600 DDR3 SDRAM
Due to the operating system limitation, the actual
memory size may be less than 4GB for the reservation
for system usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
EXPANSION SLOT º 3 x PCI Express x16 Gen3.0
slots (2X16 1X8, 2X16 support by PLX8747)
º 2 x PCI Express x1 slots
º 2 x PCI slots
º 1 x Mini PCI Express x1 slot
    • Supports Mini SATA
    • Supports Mini PCI Express
STORAGE º Support by Intel® Z77
    • 2 x Serial ATA 3.0Gb/s devices (SATA2 3/4)
    • 2 x Serial ATA 6.0Gb/s devices (SATA3 1/2)
    • RAID0, RAID1, RAID5, RAID 10 configuration
º Support by ASMEDIA ASM1061
    • 2 x Serial ATA 6.0Gb/s devices (SATA3 5/ 6)
    • 2 x eSATA 6.0 Gb/s ports
AUDIO º Realtek ALC892 8-Ch High Definition audio CODEC
º Compliant with HD audio specification
LAN º RealTek RTL 8111E Gigabit Lan
REAR PANEL I/O º 4 x USB 3.0 ports
º 4 x USB 2.0 Ports
º 1 x D-sub(VGA)
º 1 x HDMI Port
º 1 x RJ45 LAN connector
º 1 x Audio port (1x Line in, 4x Line out, 1x Optical SPDIF Out)
º 1 x Clear_CMOS button
º 1 x wifi connector
º 1 x Bluetooth
º 2 x eSATA 6.0Gb/s ports
º 1 x HDMI
INTERNAL I/O CONNECTORS & HEADERS º 1 x 24-pin ATX Power Supply connector
º 1 x 8-pin ATX Power Supply Connector
º 1 x 4-pin CPU_FAN connector
º 1 x 3-pin SYS_FAN connector
º 1 x 3-pin PWR_FAN connector
º 1 x USB 2.0 header support additional 2 USB ports with
EZ charger technology
º 1 x USB 3.0 header supports additional 2 USB 3.0 Ports
(support by TI TUSB7320)
º 2 x SATA 3Gb/s connectors
º 4 x SATA 6Gb/s connectors
º 1 x COM header
º 1 x Case Open header
º 1 x SPDIF out header
º 1 x Front panel switch/LED header
º 1 x Front panel audio header
º 1 x debug post LED
º 1 x Power on button
º 1 x Reset button
º 1 x mSATA
SYSTEM BIOS º AMI BIOS with 64Mb SPI Flash ROM
º Support ECS M.I.B X Utility
º Supports eBLU
º Support eOC
º Supports eDLU
º Supports eSF
FORM FACTOR º ATX Size, 305mm*244mm
