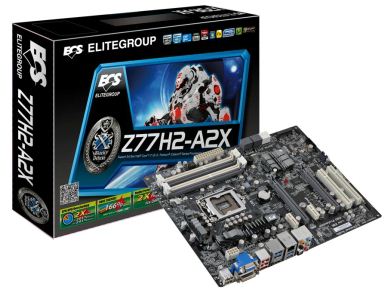

ECS INTEL MB Z77H2-A2X GL V2.0 DELUXE

CPU º Supports new 2nd & 3rd gen Intel® Core™ family,
Pentium, Celeron series processors in LGA1155 socket
º DMI 5.0GT/s
º Please refer to CPU support list for details
CHIPSET º Intel® Z77 Express Chipset
GRAPHICS º Supports DirectX® 11
º *DirectX 11 - Only supported with the 3rd Gen Intel
processors for LGA 1155 socket
MEMORY º Dual-channel DDR3 Memory architecture
º Supports DDR3 1600 non-ECC, Un-buffered SDRAM Memory
º Supports up to 2800(OC)/2600(OC)/2400(OC)/2133(OC)/1800(OC)
º 4 X 240-pin DDR3 DIMM socket
º Support up to 32 GB*
º Note:Please refer to the latest Memory support list for details
EXPANSION SLOT º 2 X PCI Express X16 Gen 3.0 slot(s)
º 2 X PCI Express X 1 Gen 2.0 slot(s)
º 1 X Mini PCI Express X1 slot(s)( Mini SATA supported)
º 2 X PCI slot(s)
º *When using two VGA cards, the bandwidth is @8 badnwidth;
 when using one VGA card, the bandwodth is @16.
Storage º Support by Intel Z77 Express Chipset
    • 2 X Serial ATAIII 6Gb/s
      Located in SATA3_3/ 4 Port
    • 2 X Serial ATAII 3Gb/s
      Located in SATA2_1/ 2 Port
º Support by ASMEDIA ASM1061 Controler
    • 2 X Serial ATAIII 6Gb/s
      Located in SATA3_5/6 Port
    • RAID0, RAID1,RAID5, RAID 10 configuration
Audio º Compliant with HD audio specification
º Realtek ALC892
‧Realtek ALC892 8-channel High Definition audio CODEC
‧Compatible with Direct Sound 3D™, A3D™, I3DL2
‧Smart multiple streaming operation
‧Intuitive Configuration Panel (Realtek Audio Manager)
to enhance user experience
‧7.1+2 channel multi-streaming enables concurrent gaming/VoIP
LAN º Realtek 8111E Gigabit Fast Ethernet Controller
USB º Support by Z77 Express Chipset
    • 6 X USB3.0 port(s) up to 5Gb/s
      Back Panel 4 port(s)
      Onboard 2 port(s)
    • 6 X USB2.0 port(s) Up to 480 Mb/s
      Back Panel 4 port(s)
      Onboard 2 port(s)
REAR PANEL I/O º 1 X Audio port (Line-in,4x Line-out,
 SPDIF out)
º 1 X RJ-45 port
º 1 X HDMI port(s)
º 1 X DVI-I port(s)
º 1 X D-Sub (VGA) port(s)
º 1 X eSATA 3Gb/s port(s)
º 4 X USB3.0 port(s)
º 2 X USB2.0 port(s)
CONNECTORS & HEADERS º 1 X 24-pin ATX Power Supply
 connector
º 1 X 8-pin ATX 12V Power Connector
º 1 X 4-pin CPU_FAN connector
º 1 X 3-pin SYS_FAN connector
º 1 X 3-pin PWR_FAN connector
º 1 X Front Panel switch/LED header
º 1 X Front panel audio header
º 1 X Onboard Buzzer
º 1 X USB 3.0 header
    • Support additional 2 USB ports
º 1 X USB 2.0 header
    • Support additional 2 USB ports
º Support EZ charger (gray color)
º 4 X SATA III 6Gb/s connector(s)
º 2 X SATA II 3Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X Serial port header (COM)
SYSTEM BIOS º AMI BIOS with 64 MB SPI Flash ROM
º Supports M.I.B X Utility
º ACPI & DMI
º F7 hot key for boot up devices option
º Over-Clocking
º Dual Display
º Support GUI UEFI BIOS
º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Multi-Language BIOS
º Audio, LAN, can be disabled in BIOS
FORM FACTOR º ATX Form Factor
º 305 mm(W) X 244mm(H)
OS Support º Windows 7 32-bit
º Windows 7 64-bit
º Windows 8 32-bit
º Windows 8 64-bit
Certifications º CE/FCC Certification
º ErP/EuP Certification
º WHQL Certification
º WHCK Certification
Bundled Software º ECS Intelligent EZ Utility :
eBLU, eDLU, eOC, eSF
º Free Bundle: Norton Internet Security ,CyberLink PowerDVD,
CyberLink PowerDirector 9, Muzee with trial version
º Creative Sound Blaster Cinema2 software
