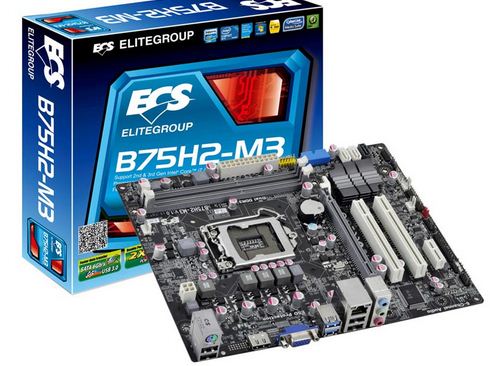

ECS INTEL MB B75H2-M3 GL V1.0

₱3200

Add to cart

₱0tax excl.

(price reduced by 100 %)

Online only!

5 items in stock

Reduced price!
CPU º Supports new 2nd & 3rd gen Intel® Core™
family, Pentium, Celeron series processors in LGA1155 socket
º DMI 5.0GT/s
º 6 Phase Thermal Design Power
º VRD 12.0
º Solid Capacitor for CPU side
º Supports Intel® Turbo Boost 2.0 Technology
º Supports Intel® Hyper-Threading Technology
º Intel® K Series Unlock CPU Support
º Please refer to CPU support list for details
CHIPSET º Intel® B75 Express Chipset
º Supports Intel® Small Business Advantage
GRAPHICS º Support Intel® HD Graphics
2500/4000(Intel 3rd gen CPU)
º Supports DirectX® 11
º *DirectX 11 - Only supported with the 3rd Gen Intel
 processors for LGA 1155 socket
º Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video,
Clear Video HD Technology, Insider™
º Supports HDMI 1.4a & Premium Audio
º Supports Full HD 1080P Blu-ray / HD-DVD Playback
MEMORY º Dual-channel DDR3 Memory architecture
º Supports DDR3 1600/1333/1066 non-ECC, Un-buffered SDRAM Memory
º 2 X 240-pin DDR3 DIMM socket
º Support up to 16 GB*
º Intel® extreme Memory Profile (XMP) 1.3/1.2 Memory Modules
º * Due to the operation system limitation, the actual memory
 size may be less than 4GB for the reservation for system usage
under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU,
there is no such limitation
º Note:Please refer to the latest Memory support list for details
EXPANSION SLOT º 1 X PCI Express X16 Gen 3.0 slot(s)
º 1 X PCI Express X 1 Gen 2.0slot(s)
º 2 X PCI slot(s)
Storage º Support by Intel® B75 Express Chipset
    • 1 X Serial ATAIII 6Gb/s
    • 2 X Serial ATAII 3Gb/s
º Supports NCQ, AHCI and "Hot Plug" functions
Audio º 6-Channel HD audio CODEC
º Compliant with HD audio specification
º Realtek ALC666 6-channel High Definition audio CODEC
º BluRay DVD/HD DVD support
LAN º Realtek 8111E Gigabit Fast Ethernet Controller
º Wake-On-LAN
USB º Support by Intel® B75 Express Chipset
    • 4 X USB3.0 port(s) up to 5Gb/s
      Back Panel 2 port(s)
      Onboard 2 port(s)
    • 6 X USB2.0 port(s) Up to 480 Mb/s
      Back Panel 4 port(s)
      Onboard 2 port(s)
REAR PANEL I/O º 1 X PS/2 combo connector
º 1 X Audio port (Line Out/Line In/Mic In)
º 1 X RJ-45 port
º 1 X D-Sub (VGA) port(s)
º 1 X HDMI port(s) (DVI port(s), optional)
º 2 X USB3.0 port(s)
º 4 X USB2.0 port(s)
CONNECTORS & HEADERS º 1 X 24-pin ATX Power Supply connector
º 1 X 4-pin 12V Power connector
º 1 X 4-pin CPU_FAN connector
º 1 X 3-pin SYS_FAN connector
º 1 X 3-pin PWR_FAN connector
º 1 X Front Panel switch/LED header
º 1 X Front panel audio header
º 1 X Speaker header
º 1 X USB 3.0 header
    • Support additional 2 USB ports
º 1 X USB 2.0 header
    • Support additional 2 USB ports
º 1 X S/PDIF out header
º 1 X SATA III 6Gb/s connector(s)
º 2 X SATA II 3Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X Serial port header (COM)
º 1 X Parallel port header (LPT)
º 1 X TPM header
º 1 X ME_UNLOCK header
º 1 X Chassis intrusion header
SYSTEM BIOS º AMI BIOS with 64 MB SPI Flash ROM
º Supports M.I.B III Utility
º Supports ACPI 3.0 & DMI
º F7 hot key for boot up devices option
º Over-Clocking
º Dual Display
º Support ECS EZ BIOS
º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Multi-Language BIOS
º Audio, LAN, can be disabled in BIOS
º Supports PgUp clear CMOS Hotkey
º Dual-Monitor function
FORM FACTOR º mATX Form Factor
º  244mm(W)*200mm(H)
OS Support º Windows XP 32-bit
º Windows XP 64-bit
º Windows Vista 32-bit
º Windows Vista 64-bit
º Windows 7 32-bit
º Windows 7 64-bit
º Windows 8 32-bit
º Windows 8 64-bit
Certifications º CE/FCC Certification
º ErP/EuP Certification
º WHQL Certification
º WHCK Certification
Bundled Software º ECS Intelligent EZ Utility :
eBLU, eDLU, eOC, eSF
º Free Bundle: Norton Internet Security ,CyberLink PowerDVD,
 CyberLink PowerDirector 9, Muzee with trial version
