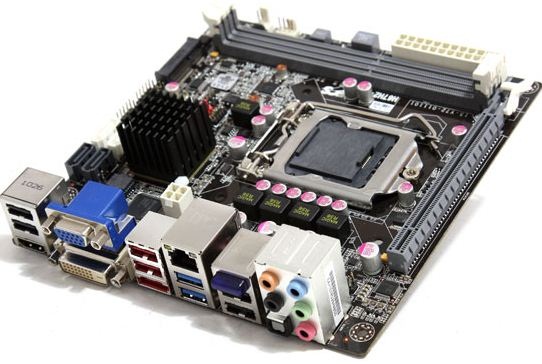

ECS INTEL MB H67H2-I GL V1.1

CPU º LGA1155 socket for new 2nd Generation Intel®
Core™ i7 series processor/Intel® Core™ i5 series processor/Intel® Core™ i3 series processor/Intel® Pentium® processors/Intel® Celeron® processors
º Supports Intel® Unlock Processors
º Supports Intel® Turbo boost 2.0 technology
º DMI 20Gb/s
CHIPSET º Intel® H67 Express Chipset
Extra Chips º Etron USB 3.0 Controllor supports 2 x
USB 3.0 ports at the back panel (Compatiable with 2 x USB 2.0 ports)
GRAPHICS º Intel HD Graphics 2000/3000(Intel 2nd
gen CPU) & 2500/4000(Intel 3rd gen CPU)
º Supports Intel® Quick Sync Video 2.0 (Intel 3rd gen CPU),
Advanced Vector Extensions, Clear Video HD Technology, InTru™ 3D
º Supports HDMI 1.4a & Premium Audio
º Integrated DirectX 11 graphics processor
º Supports OpenGL 3.1(Intel 3rd gen CPU)
º Supports OpenCL 1.1(Intel 3rd gen CPU)
º Supports Switchable Graphics
º Integrated DP with up to 2560x1600 resolution
º Supports Full HD 1080P Blu-ray / HD-DVD Playback
MEMORY º Dual-channel DDR3 memory architecture
º 2 x 240-pin DDR3 DIMM socket support up to 16 GB*
º Support DDR3 1333/1066 SDRAM
º *(Due to the DRAM maximum size is 4GB at present, the
 memory maximum size we have tested is 8GB)
Due to the operating system limitation, the actual memory
 size may be less than 4GB for the reservation for system
 usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
EXPANSION SLOT º 1 x PCI Express x16 Gen2.0 slot
º 1 x Mini PCI Express x1 slot
    • Supports Mini SATA
    • Supports Mini PCI Express
STORAGE º Support by Intel® H67
    • 2 x Serial ATA 6.0Gb/s devices
    • 2 x Serial ATA 3.0Gb/s devices
    • 1 x eSATA 3Gb/s port
AUDIO º Realtek ALC892 8-Ch High Definition audio CODEC
º Compliant with HD audio specification
LAN º Realtek 8111E Gigabit LAN Fast Ethernet Controller
REAR PANEL I/O º 2 x USB 3.0 ports compatible to both USB
 3.0/2.0 devices (blue)
º 6 x USB 2.0 ports
º 1 x D-sub(VGA)
º 1 x HDMI 1.4a port
º 1 x DVI Port
º 1 x Bluetooth
º 1 x RJ45 LAN connector
º 1 x SPDIF out connector
º 1 x Audio port (Line-in, Front Out, Mic_in Rear, Center & Woofer,
 Back Surrond, Side Surround)
º 1 x eSATA 3Gb/s port
INTERNAL I/O CONNECTORS & HEADERS º 1 x 24-pin ATX Power
Supply connector
º 1 x 4-pin CPU_FAN connector
º 1 x 3-pin SYS_FAN connector
º 2 x SATA 3Gb/s connectors
º 2 x SATA 6Gb/s connectors
º 1 x Front panel switch/LED header
º 1 x Front panel audio header
º 2 x USB 2.0 headers support additional 4 USB ports
(F_USB1 supports EZ Charger)
º 1 x Chassis intrusion header
º 1 x Speaker header
SYSTEM BIOS º AMI BIOS with 32Mb SPI ROM
º Supports Plug and Play, STR (S3) / STD (S4) ,
Hardware monitor, Multi Boot
º Supports ACPI & DMI
º Audio, LAN, can be disabled in BIOS
º F7 hot key for boot up devices option
º Supports Page Up clear CMOS Hotkey
º Supports ACPI 3.0 & DMI
º Support Graphic Over-Clocking
º Support Dual-Monitor function
º Supports eJIFFY
º Supports eBLU
º Supports eSF
º Supports ECS M.I.B III Utility
    • CPU voltage adjustable
    • Memory voltage adjustable
    • IMC Voltage Adjustable
    • Graphic Voltage Adjustable
FORM FACTOR º Mini ITX 170x170mm
OS Support º Windows XP 32/64bit
º Windows 7 32/64bit
Certifications º CE/FCC Certification
º ErP/EuP Certification
º WHQL Certification
Bundled Software º ECS Intelligent EZ Utility :
eBLU, eDLU, eOC, eSF
º Free Bundle: Norton Internet Security ,CyberLink Media
Suite, Muzee with trial version
