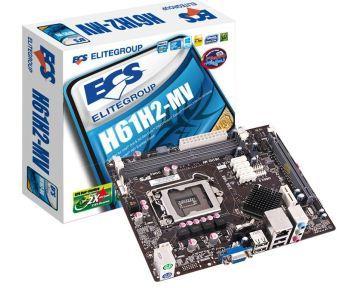

ECS INTEL MB H61H2-MV GL V1.0

CPU º Supports new 2nd & 3rd gen Intel® Core™
family, Pentium, Celeron series processors in LGA1155 socket
º DMI 5.0GT/s
º VRD 12.0
º Solid Capacitor for CPU side
CHIPSET º Intel® H61 Express Chipset
GRAPHICS º Support Intel® HD Graphics
2000/3000(Intel 2nd gen CPU) & 2500/4000(Intel 3rd gen CPU)
º Supports DirectX® 11
º Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video,
Clear Video HD Technology, Insider™
MEMORY º Dual-channel DDR3 Memory architecture
º Supports DDR3 1600*/1333/1066 non-ECC, Un-buffered SDRAM Memory
º 2 X 240-pin DDR3 DIMM socket
º Support up to 16 GB*
º * Due to the operation system limitation, the actual
memory size may be less than 4GB for the
reservation for system usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
º * Intel® Ivy Bridge CPU required
EXPANSION SLOT º 1 X PCI Express X16 Gen 3.0 slot(s)
º 1 X PCI Express X 1 Gen 2.0slot(s)
Storage º Support by H61 Express Chipset
    • 4 X Serial ATAII 3Gb/s
Audio º Realtek ALC662
‧Realtek ALC662 6-channel High Definition audio CODEC
‧Meets performance requirements for Microsoft WLP 3.08
Vista premium and mobile PCs
‧Six channel DAC supports 16/20/24-bit PCM format for
5.1 channel audio solution
‧Emulation of 26 sound environments to enhance gaming
experience
‧Voice Cancellation and Key Shifting in Karaoke mode
‧Compatible with Direct Sound 3D™, A3D™, I3DL2
LAN º Realtek 8111E Gigabit Fast Ethernet Controller
º (8105E 10/100Mbps Fast Ethernet Controller optional)
º Wake-On-LAN
USB º Support by H61 Express Chipset
    • 8 X USB2.0 port(s) Up to 480 Mb/s
REAR PANEL I/O º 1 X PS/2 Keyboard & PS/2 mouse connectors
º 1 X Audio port (Line Out/Line In/Mic In)
º 1 X RJ-45 port
º 1 X HDMI port(s) (optional)
º 1 X DVI-I port(s) (optional)
º 1 X D-Sub (VGA) port(s)
º 4 X USB2.0 port(s)
CONNECTORS & HEADERS º 1 X 24-pin ATX Power Supply connector
º 1 X 4-pin 12V Power connector
º 1 X 4-pin CPU_FAN connector
º 1 X 3-pin SYS_FAN connector
º 1 X Front panel audio header
º 1 X Speaker header
º 2 X USB 2.0 header
    • Support additional 4 USB ports
º 4 X SATA II 3Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X Serial port header (COM)
º 1 X ME_UNLOCK header
SYSTEM BIOS º AMI BIOS with 32 MB SPI Flash ROM
º Supports M.I.B III Utility
º ACPI & DMI
º F7 hot key for boot up devices option
º Over-Clocking
º Dual Display
º Plug and Play, STR (S3) / STD (S4) , Hardware monitor,
Multi Boot
º Multi-Language BIOS
º Audio, LAN, can be disabled in BIOS
º Supports PgUp clear CMOS Hotkey
º CPU FSB adjustment(increase of 1MHz)
FORM FACTOR º mATX Form Factor
º 195 mm(W) X 170mm(H)
OS Support º Windows XP 32-bit
º Windows XP 64-bit
º Windows 7 32-bit
º Windows 7 64-bit
º Windows 8 32-bit
º Windows 8 64-bit
Certifications º CE/FCC Certification
º ErP/EuP Certification
º WHCK Certification
Bundled Software º ECS Intelligent EZ Utility :
eBLU, eDLU, eSF
º Free Bundle: Norton Internet Security ,CyberLink PowerDVD,
CyberLink PowerDirector 9, Muzee with trial version
