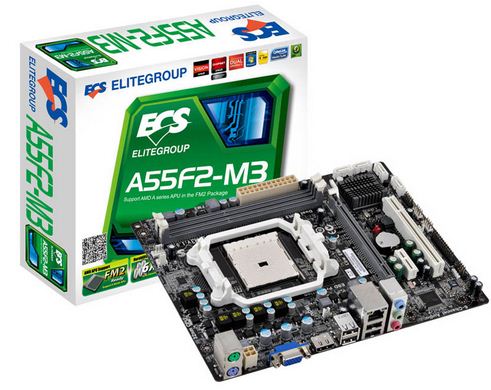

CPU º Supports AMD® FM2 socket for AMD® A
series, E Series processors
º 3+2 Phase Thermal Design Power
º 100% Solid capacitor design
º Supports AMD Turbo Core Technology
º Please refer to CPU support list for details
CHIPSET º AMD® A55
GRAPHICS º AMD Radeon™ HD 7xxx graphics
º Supports DirectX® 11
º Supports AMD UVD 3.0
º Supports AMD Dual Graphics
MEMORY º Dual-channel DDR3 Memory architecture
º Supports DDR3 1866/1800/1600/1333/1066 non-ECC,
Un-buffered SDRAM Memory
º 2 X 240-pin DDR3 DIMM socket
º Support up to 32 GB*
º AMD® AMD Memory Profile (AMP) Memory Modules
º * Due to the operation system limitation,
the actual memory size may be less than 4GB
for the reservation for system usage under
indows® 32-bit OS. For Windows® 64-bit OS
with 64-bit CPU, there is no such limitation
º * Due to AMD CPU spec limitation, please
refer to Memory QVL for more information.
EXPANSION SLOT º 1 X PCI Express X16 Gen 2.0 slot(s)
º 1 X PCI Express X 1 Gen 2.0 slot(s)
º 1 X PCI slot(s)
Storage º Support by AMD A55 Express Chipset
• 4 X Serial ATAII 3Gb/s
• RAID0, RAID1,RAID10 configuration
º Supports NCQ, AHCI and "Hot Plug" functions
Audio º 6-Channel HD audio CODEC
º Compliant with HD audio specification
º VIA 1705
‧VIA® VT1705 6-channel High Definition audio CODEC
‧Compliant with HD audio specification for a whole
new immersive surround sound experience
‧3 DACs and 2 ADCs with High-performance ADCs with
100dB SNR, DACs with 100dB SNR
‧Low Power Consumption
‧Capability for “full rate” BluRay / DVD / HD DVD support.
LAN º Realtek 8111E Gigabit Fast Ethernet Controller
º Wake-On-LAN
USB º Support by AMD A55 Express Chipset
• 8 X USB2.0 port(s) Up to 480 Mb/s
Back Panel 4 port(s)
Onboard 4 port(s)
REAR PANEL I/O º 1 X PS/2 Keyboard & PS/2 mouse connectors
º 1 X Audio port (Line Out/Line In/Mic In)
º 1 X RJ-45 port
º 1 X HDMI port(s) (optional)
º 1 X D-Sub (VGA) port(s)
º 4 X USB2.0 port(s)
CONNECTORS & HEADERS º 1 X 24-pin ATX Power Supply connector
º 1 X 4-pin 12V Power connector
º 1 X 4-pin CPU_FAN connector
º 1 X 3-pin SYS_FAN connector
º 1 X Front Panel switch/LED header
º 1 X Front panel audio header
º 1 X S/PDIF out header
º 4 X SATA II 3Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X Serial port header (COM)
º 1 X Parallel port header (LPT)
º 1 X Chassis intrusion header
SYSTEM BIOS º AMI BIOS with 32 MB SPI Flash ROM
º Supports M.I.B III Utility
º ACPI & DMI
º Support ECS EZ BIOS
º Multi-Language BIOS
FORM FACTOR º mATX Form Factor
º 230mm(W)*180mm(H)
OS Support º Windows XP 32-bit
º Windows XP 64-bit
º Windows 7 32-bit
º Windows 7 64-bit
º Windows 8 32-bit
º Windows 8 64-bit
Certifications º CE/FCC Certification
º ErP/EuP Certification
º WHQL Certification
º WHCK Certification
Bundled Software º ECS Intelligent EZ Utility :
eBLU, eDLU, eSF
º Free Bundle: Norton Internet Security ,CyberLink PowerDVD,
CyberLink PowerDirector 9, Muzee with trial version
