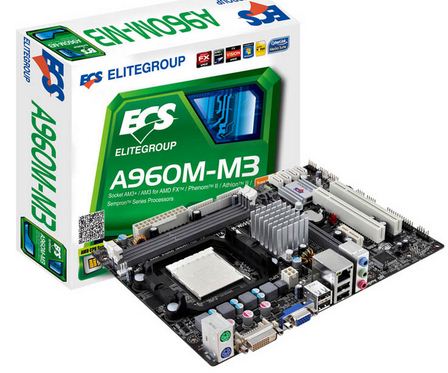

ECS AMD MB A960M-M3 GL V1.0

CPU º Supports AMD AM3+ FX™/Phenom™
II/Athlon™ II/Sempron™ 100 Series
º High-performance HyperTransport 3.0 CPU
Interface
º Note: This board supports CPU up to 125W TDP ;
you can refer to AMD website to check your CPU.
CHIPSET º AMD® 760G & AMD® SB710
º North Bridge: AMD® 760G
º South Bridge: AMD® SB710
GRAPHICS º On chip (AMD® 760G-based wit
h ATI™ Radeon HD3000 graphics)
º Integrated DirectX 10 graphics processor
º Share Memory: Maximum up to 512MB
MEMORY º Dual-channel DDR3 memory architecture
º 2 x 240-pin DDR3 DIMM socket support up to 16GB
per one DIMM support 8GB
º Support DDR3 up to 1866(OC)/1800(OC)/1600(OC)
/1333/1066 DDR3 SDRAM
º *(Due to AMD CPU spec limitation, please refer
 to Memory QVL for more information)
Due to the operating system limitation, the actual
memory size may be less than 4GB for the reservation
 for system usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no
such limitation
EXPANSION SLOT º 1 x PCI Express x16 slot
º 1 x PCI Express x1 slot
º 2 x PCI slots
STORAGE º Support by AMD® SB710
    • 4 x Serial ATA 3.0Gb/s devices
    • RAID0, RAID1, RAID10 configuration
    • 2 x Ultra DMA133/100/66 devices
AUDIO º VIA® VT1705 6-channel audio CODEC
º Compliant with HD audio specification
LAN º Realtek 8111E Gigabit Lan
º Realtek 8105E 10/100 Lan(Optional)
REAR PANEL I/O º 1 x PS/2 keyboard & PS/2
mouse connectors
º 1 x D-sub(VGA)
º 1 x DVI connector(optional)
º 1 x RJ45 LAN connector
º 1 x Audio port (Line-in, Line-out, Mic-in)
º 4 x USB 2.0 Ports
INTERNAL I/O CONNECTORS & HEADERS
º 1 x 24-pin ATX Power Supply connector
º 1 x 4-pin 12V Connector
º 1 x 4-pin CPU_FAN connector
º 1 x 3-pin SYS_FAN connector
º 1 x IDE connector
º 1 x Front panel switch/LED header
º 1 x Front panel audio header
º 1 x Clear CMOS header
º 1 x Serial port header
º 1 x Parallel Header
º 4 x SATA 3Gb/s connectors
º 2 x USB 2.0 headers support additional 4 USB 2.0 Ports
º 1 x Chassis intrusion header
SYSTEM BIOS º AMI BIOS with 16Mb SPI Flash ROM
º Supports Plug and Play, STR (S3) / STD (S4) ,
 Hardware monitor, Multi Boot
º Audio, LAN, can be disabled in BIOS
º Supports eDLU
º Supports eBLU
º Support eOC
º Supports eSF
FORM FACTOR º Micro-ATX Size, 244mm*180mm
