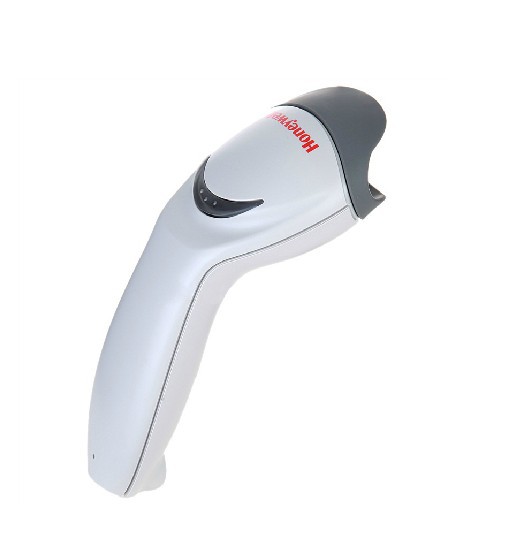

Honeywell MS 5145 Laser scanner without stand

Light Source Visible Laser Diode 650 nm + 10 nm
Decode Capability Autodiscriminates all standard bar codes, including RSS;
for other symbologies call Metrologic
System Interfaces PC Keyboard Wedge, RS232, IBM 468x/469x,
Stand Alone Keyboard, USB
Number Characters Read Up to 80 data characters
Beeper Operation 7 tones or no beep
Indicators (LED) Green = laser on, ready to scan; Red = good read
Length 169 mm (6.7”)
Width Head: 63 mm (2.5”)
Handle: 40 mm (1.6”)
Height Head: 35 mm (1.4”)
Handle: 31 mm (1.2”)
Weight (w/o cable) 97 g (3.41 oz)
Termination 10 pin modular RJ45
Cable Standard 1.5 m (5’) straight; optional 2.7 m (9’) coiled
Input Voltage 5 VDC + 0.25 V
Power 675 mW
Operating Current 135 mA @ 5 VDC
DC Transformers Class 2; 5.2 VDC @ 200 mA; or Class 2, 5.2 VDC @ 650 mA
Laser Class IEC 60825-1:1993+A1:1997+A2:2001 Class 1
EMC FCC, ICES-003 & EN55022 Class B
Scan Area
Bar Code Minimum Element
0.104 mm (4.1 mil)
0.145 mm (5.7 mil)
0.264 mm (10.4 mil)
0.330 mm (13.0 mil)
0.660 mm (26.0 mil)
0 mm 38 mm 76 mm 114 mm 152 mm 191 mm
(0”) (1.5”) (3.0”) (4.5”) (6.0”) (7.5”)
Specifications subject to change without notice.
Printed U.S.A., Copyright August 2005
Metrologic, All rights reserved.
DS5145
195 mm
(7.7”)
169 mm
(6.7”)
31 mm
(1.2”) 35 mm
(1.4”)
63 mm
(2.5”)
40 mm
(1.6”)
90 mm
(3.5”)
65 mm
(2.6”)
35 mm
(1.4”)
MS5145 Stand (optional)
Product Colors

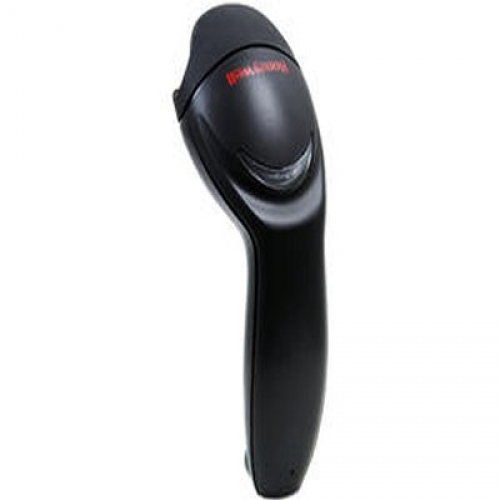

Available Light Grey Black
MS5145 is available in a variety of other colors with minimum quantity purchase
SCAN PERFORMANCE
Depth of Scan Field 0 mm - 140 mm (0” - 5.5”) for 0.33 mm (13 mil) bar codes
Width of Scan Field 49 mm (1.9”) @ face; 195 mm (7.7”) @ 140 mm (5.5”)
Scan Speed 72 scan lines per second
Scan Pattern Single scan line
Minimum Bar Width 0.102 mm (4.0 mil)
Print Contrast 35% minimum reflectance difference
Roll, Pitch, Yaw 42°, 68°, 52°
ENVIRONMENTAL
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Shock Designed to withstand 1.5 m (5’) drops
Light Levels Up to 4842 Lux (450 footcandles)
Contaminants Sealed to resist airborne particulate contaminants
Ventilation None required
