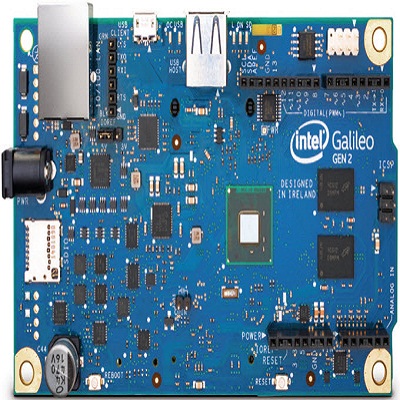

Intel® Galileo Gen 2 Development Board

₱3200

Add to cart

₱0tax excl.

(price reduced by 100 %)

Online only!

5 items in stock

Reduced price!

Physical Characteristics

  • 10 cm long and 7 cm wide with the USB connectors, UART jack, Ethernet connector, and power jack extending beyond the former dimension
  • Four screw holes allow the board to be attached to a surface or case
  • Reset button to reset the sketch and any attached shields


Processor Features

  • Instruction set architecture (ISA)-compatible 32-bit Intel® Pentium® processor
    • 16 Kbytes L1 cache
    • 512 Kbytes of on-die embedded SRAM
    • Simple to program: single thread, single core, constant speed
    • ACPI-compatible CPU sleep states supported
    • Integrated real-time clock (RTC) with optional 3V “coin cell” battery for operation between turn on cycles
    • 400 MHz clock speed


Storage Options

  • 8 Mbyte Legacy SPI Flash to store firmware (bootloader) and the latest sketch
    • Between 256 Kbytes and 512 Kbytes dedicated for sketch storage
    • 512 Kbytes embedded SRAM
    • 256 Mbytes DRAM
    • Optional micro SD card offers up to 32 Gbytes of storage
    • USB storage works with any USB 2.0 compatible drive
    • 11 Kbytes EEPROM programmed via the EEPROM library
