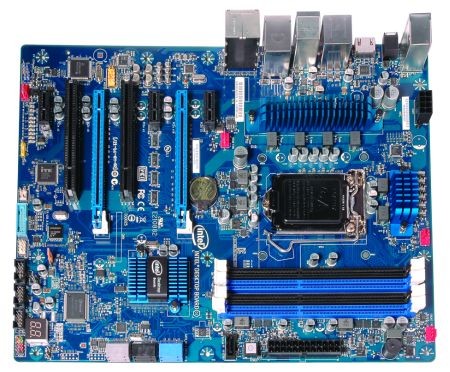

Intel BLKDZ77BH55K
₱0
Essentials | ||
Status | End of Life | |
Launch Date | Q2'12 | |
Board Form Factor | ATX | |
Socket | LGA1155 | |
Extended Life Program (XLP) | No | |
Embedded Options Available | No | |
Max TDP | 95 W | |
Recommended Customer Price | N/A | |
Description | Link |
Memory Specifications | ||
Max Memory Size (dependent on memory type) | 32 GB | |
Memory Types | Dual DDR3-2400/1600/1333 O.C. | |
# of Memory Channels | 2 | |
# of DIMMs | 4 |
Graphics Specifications | ||
Integrated Graphics‡ | Yes | |
Graphics Output | HDMI DP | |
Discrete Graphics | 2 PCIe 3.0 x16 |
Expansion Options | ||
PCI Support | 2 | |
PCIe x1 Gen 2.x | 3 | |
PCIe x4 Gen 2.x | 0 | |
PCIe x8 Gen 2.x | 0 | |
PCIe x16 Gen 2.x | 0 | |
PCIe x1 Gen 1.x | 0 | |
PCIe x4 Gen 1.x | 0 | |
PCIe x8 Gen 1.x | 0 | |
PCIe x16 Gen 1.x | 2 |
I/O Specifications | ||
# of USB Ports | 16 | |
USB 2.0 Configuration (Back + Internal) | 4,6 | |
USB 3.0 Configuration (Back + Internal) | 2,4 | |
Total # of SATA Ports | 7 | |
Max # of SATA 6.0 Gb/s Ports | 4 | |
# of eSATA Ports | 1 | |
RAID Configuration | 0,1,5,10 | |
# of PATA Ports | 0 | |
# of Parallel Ports | 0 | |
Parallel Port via Internal Header | No | |
# of Serial Ports | 0 | |
Serial Port via Internal Header | No | |
Audio (back channel + front channel) | 8,2 | |
Integrated LAN | 10/100/1000 | |
Consumer Infrared Headers | Yes | |
S/PDIF Out Connector | 1 | |
# of PS2 Ports | 1 |
Package Specifications | ||
Max CPU Configuration | 1 | |
Low Halogen Options Available | See MDDS |
Advanced Technologies | ||
Intel® HD Audio Technology | Yes | |
Intel® Rapid Storage Technology | Yes |
