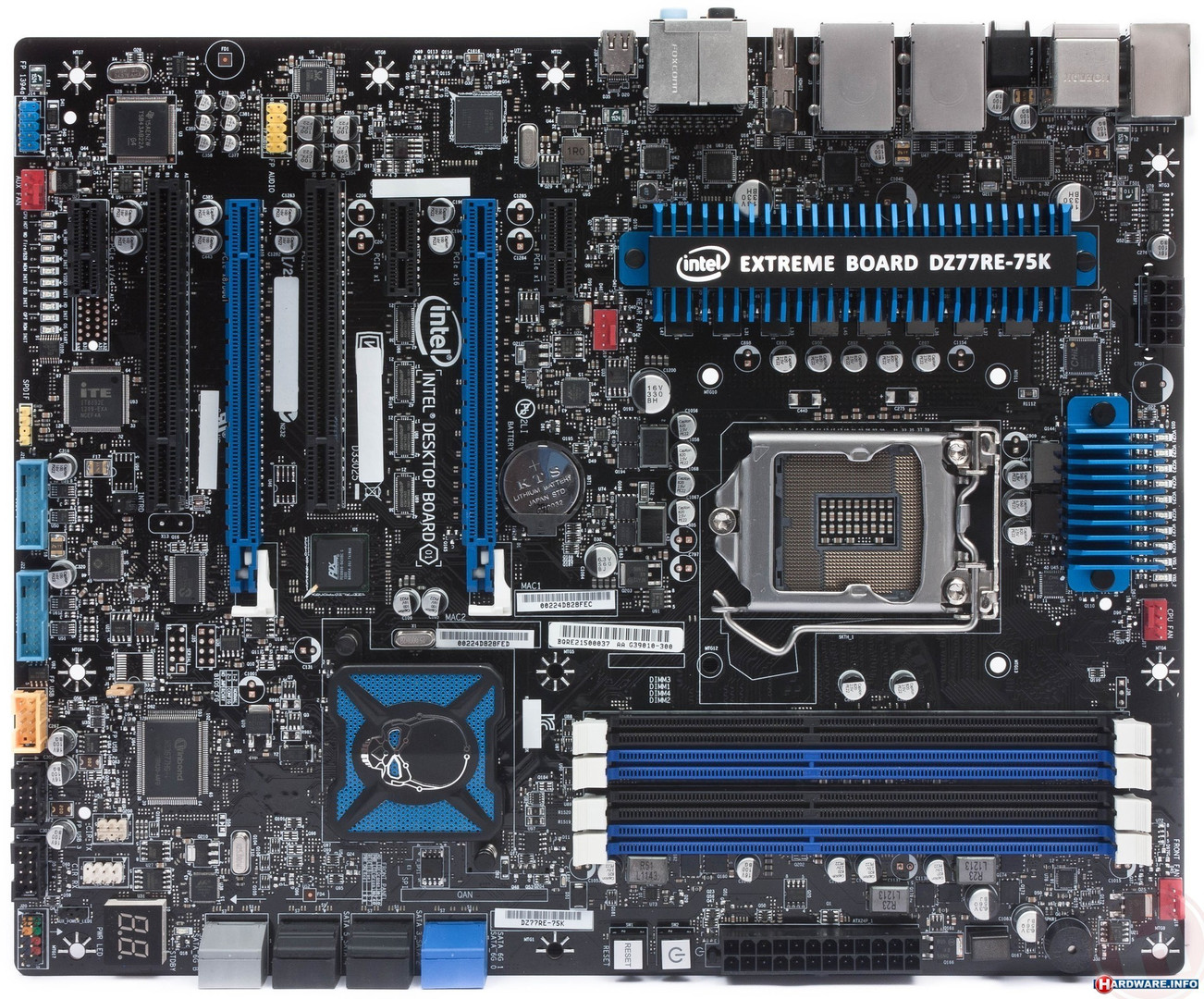

Intel BLKDZ77RE75K

Form factor

ATX

AA# (Altered Assembly)

G30742-XXX

BIOS ID string

GAZ7711H.86A with Intel Fast Boot Technology

Processor

At product launch, this Intel® Desktop Board DZ77RE-75K supports:

• Intel® Core™ i7 K processors series and other processors in an LGA1155 socket
• 2nd and 3rd Generation Intel® Core™ i7 processor series in an LGA1155 socket
• 2nd and 3rd Generation Intel® Core™ i5 processor series in an LGA1155 socket
• 2nd and 3rd Generation Intel® Core™ i3 processor series in an LGA1155 socket

Memory

• Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
• Support for DDR3 2400+ O.C.

• Support for up to 32 GB¹ of system memory
• Tested system memory

Chipset

• Intel® Z77 Express Chipset
• Intel® Rapid Storage Technology (Intel® RST) for RAID 0, 1, 5, and 10

Graphics

• Intel® HD Graphics, HDMI*
• Two PCI Express* 3.0 x16 connectors (one x8 electrical)
• Supports ATI CrossFireX* and NVIDIA SLI*

Audio

• Intel® High Definition Audio (Intel® HD Audio)² subsystem in the following configuration:
• Ten-channel (7.1 + 2 independent multi-streaming) audio subsystem with six analog audio outputs w/optical S/PDIF out port
• Supports Dolby* Home Theatre V4

LAN support

• Dual Gigabit (10/100/1000 Mb/s) LAN subsystems using the Intel® 82579V Gigabit Ethernet Controller

Peripheral interfaces

• Thunderbolt connector
• Eight SuperSpeed USB 3.0 ports (4 external/4 header)
• Ten USB 2.0 ports (4 external (2 Hi-Current/Fast Charging) / 6 internal)
• Four Serial ATA 6.0 Gb/s ports , one eSATA 6.0 Gb/s
• Four Serial ATA 3.0 Gb/s ports
• Two IEEE 1394a ports/headers (1 external/1 header)
• Consumer Infrared receiver and emitter

Expansion capabilities

• Two PCI Express 3.0 x16 connectors (one x8 electrical)
• Two PCI Express 2.0 x 1 connectors
• One PCI Express 2.0 x 4 connectors
• Two PCI Conventional bus connectors
