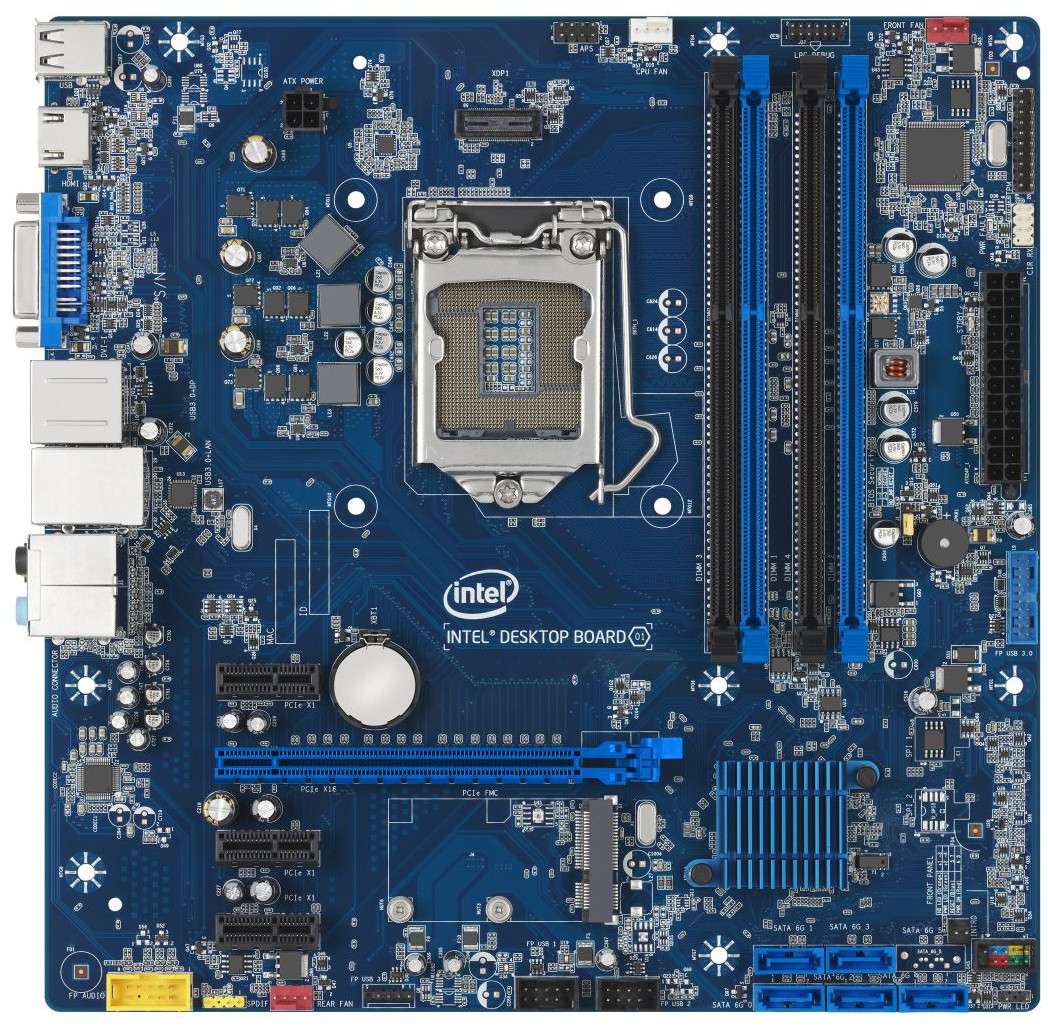

Intel BLKDB85FL
₱3875
Essentials | ||
Status | Launched | |
Launch Date | Q2'13 | |
Board Form Factor | Micro ATX | |
Socket | LGA1150 | |
Embedded Options Available | No | |
Max TDP | 95 W | |
Recommended Customer Price | $81.00 - $84.00 |
Memory Specifications | ||
Max Memory Size (dependent on memory type) | 32 GB | |
Memory Types | DDR3-1600/1333 | |
# of Memory Channels | 2 | |
# of DIMMs | 4 | |
ECC Memory Supported‡ | No |
Graphics Specifications | ||
Integrated Graphics‡ | Yes | |
Graphics Output | HDMI, DVI-I | |
# of Displays Supported‡ | 2 | |
Discrete Graphics | PCIe 3.0 x16 | |
Requires a Processor with Intel Graphics Technology | Yes |
Expansion Options | ||
PCIe x16 Gen 3 | 1 | |
PCIe x1 Gen 2.x | 2 |
I/O Specifications | ||
# of USB Ports | 12 | |
USB 2.0 Configuration (Back + Internal) | 4 4 | |
USB 3.0 Configuration (Back + Internal) | 2 2 | |
Total # of SATA Ports | 6 | |
Max # of SATA 6.0 Gb/s Ports | 4 | |
Audio (back channel + front channel) | 6 2 | |
Integrated LAN | 10/100/1000 Mbps |
Package Specifications | ||
Max CPU Configuration | 1 | |
Low Halogen Options Available | See MDDS |
Advanced Technologies | ||
Intel® Virtualization Technology for Directed I/O (VT-d)‡ | Yes | |
Intel® HD Audio Technology | Yes | |
Intel® Rapid Storage Technology | Yes | |
Intel® Virtualization Technology (VT-x)‡ | Yes | |
Intel® Small Business Advantage | Yes |
Intel® Platform Protection Technology | ||
Anti-Theft Technology | Yes |
