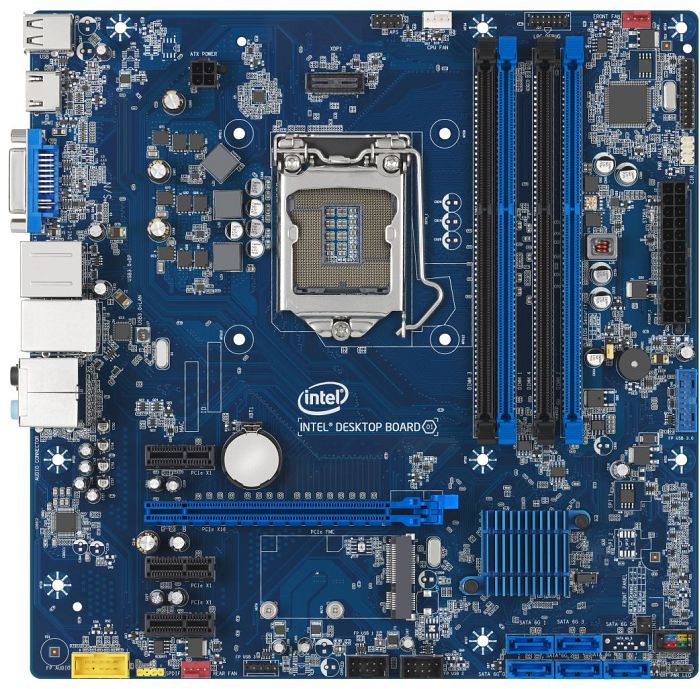

Intel BLKDH87RL

₱0

Add to cart

₱0tax excl.

(price reduced by 100 %)

Online only!

0 items in stock

Phased Out

Reduced price!

SPECIFICATIONS

Essentials
Status Launched
Launch Date Q2'13
Board Form Factor Micro ATX
Socket LGA1150
Embedded Options Available No
Max TDP 95 W
Recommended Customer Price $96.00 - $99.00
Memory Specifications
Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR3-1600/1333
# of Memory Channels 2
# of DIMMs 4
ECC Memory Supported‡ No
Graphics Specifications
Integrated Graphics‡ Yes
Graphics Output DVI-I, HDMI, DisplayPort* v1.2
# of Displays Supported‡ 3
Discrete Graphics PCIe 3.0 x16
Requires a Processor with Intel Graphics Technology Yes
Expansion Options
PCIe x16 Gen 3 1
PCIe x1 Gen 2.x 3
PCIe Mini Card Slot (Full Length) 1
I/O Specifications
# of USB Ports 14
USB 2.0 Configuration (Back + Internal) 2 6
USB 3.0 Configuration (Back + Internal) 4 2
Total # of SATA Ports 6
Max # of SATA 6.0 Gb/s Ports 6
RAID Configuration 0,1,5,10
Audio (back channel + front channel) 8 2
Integrated LAN 10/100/1000 Mbps
Consumer Infrared Headers Yes
S/PDIF Out Connector 1
Package Specifications
Max CPU Configuration 1
Low Halogen Options Available See MDDS
Advanced Technologies
Intel® HD Audio Technology Yes
Intel® Matrix Storage Technology Yes
Intel® Rapid Storage Technology Yes
