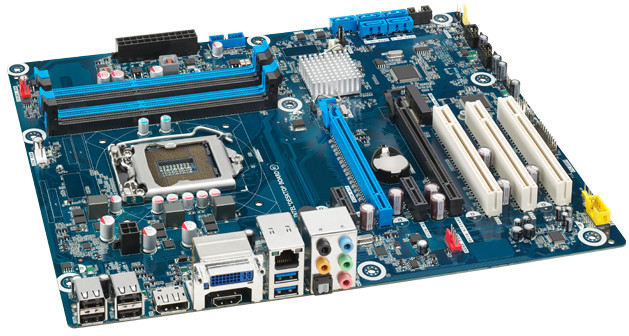

Intel BLKDH87MC
₱0
Essentials | ||
Status | Launched | |
Launch Date | Q2'13 | |
Board Form Factor | ATX | |
Socket | LGA1150 | |
Embedded Options Available | No | |
Max TDP | 95 W | |
Recommended Customer Price | $106.00 - $110.00 |
Memory Specifications | ||
Max Memory Size (dependent on memory type) | 32 GB | |
Memory Types | DDR3-1600/1333 | |
# of Memory Channels | 2 | |
# of DIMMs | 4 | |
ECC Memory Supported‡ | No |
Graphics Specifications | ||
Integrated Graphics‡ | Yes | |
Graphics Output | DVI-I, HDMI, DisplayPort* v1.2 | |
# of Displays Supported‡ | 3 | |
Discrete Graphics | PCIe 3.0 x16 | |
Requires a Processor with Intel Graphics Technology | Yes |
Expansion Options | ||
PCI Support | 3 | |
PCIe x16 Gen 3 | 1 | |
PCIe x1 Gen 2.x | 2 | |
PCIe x4 Gen 2.x | 1 | |
PCIe Mini Card Slot (Full Length) | 1 |
I/O Specifications | ||
# of USB Ports | 14 | |
USB 2.0 Configuration (Back + Internal) | 4 6 | |
USB 3.0 Configuration (Back + Internal) | 2 2 | |
Total # of SATA Ports | 6 | |
Max # of SATA 6.0 Gb/s Ports | 6 | |
RAID Configuration | 0,1,5,10 | |
Audio (back channel + front channel) | 8 2 | |
Integrated LAN | 10/100/1000 Mbps | |
Consumer Infrared Headers | Yes | |
S/PDIF Out Connector | 1 |
Package Specifications | ||
Max CPU Configuration | 1 | |
Low Halogen Options Available | See MDDS |
Advanced Technologies | ||
Intel® HD Audio Technology | Yes | |
Intel® Matrix Storage Technology | Yes | |
Intel® Rapid Storage Technology | Yes |
