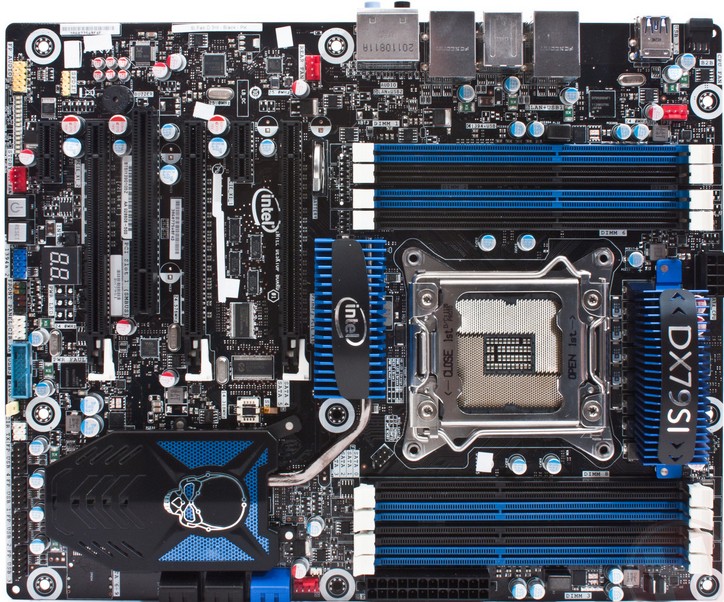

Intel BLKDX79SI
₱0
Essentials | ||
Status | End of Life | |
Launch Date | Q4'11 | |
Board Form Factor | ATX | |
Socket | LGA2011 | |
Extended Life Program (XLP) | No | |
Embedded Options Available | No | |
Back-to-BIOS Button | Yes | |
Recommended Customer Price | N/A | |
Description | Link |
Memory Specifications | ||
Memory Types | Quad DDR3-2400 O.C. | |
# of Memory Channels | 4 | |
# of DIMMs | 8 |
Graphics Specifications | ||
Graphics Output | None | |
Discrete Graphics | 3 PCIe 3.0 x16 |
Expansion Options | ||
PCI Support | 1 | |
PCIe x1 Gen 2.x | 2 | |
PCIe x4 Gen 2.x | 0 | |
PCIe x8 Gen 2.x | 0 | |
PCIe x16 Gen 2.x | 3 | |
PCIe x1 Gen 1.x | 0 | |
PCIe x4 Gen 1.x | 0 | |
PCIe x8 Gen 1.x | 0 | |
PCIe x16 Gen 1.x | 0 |
I/O Specifications | ||
# of USB Ports | 18 | |
USB 2.0 Configuration (Back + Internal) | 6,8 | |
USB 3.0 Configuration (Back + Internal) | 2,2 | |
Total # of SATA Ports | 4 | |
Max # of SATA 6.0 Gb/s Ports | 2 | |
# of eSATA Ports | 0 | |
RAID Configuration | 0,1,5,10 | |
# of PATA Ports | 0 | |
# of Parallel Ports | 0 | |
Parallel Port via Internal Header | No | |
# of Serial Ports | 0 | |
Serial Port via Internal Header | No | |
Audio (back channel + front channel) | 8,2 | |
Integrated LAN | Dual 10/100/1000 | |
Integrated Wifi | BT/Wifi dongle | |
Firewire | 2 | |
Consumer Infrared Headers | Yes | |
S/PDIF Out Connector | 1 | |
# of PS2 Ports | 0 |
Package Specifications | ||
Low Halogen Options Available | See MDDS |
Advanced Technologies | ||
Intel® HD Audio Technology | Yes | |
Intel® Matrix Storage Technology | Yes |
