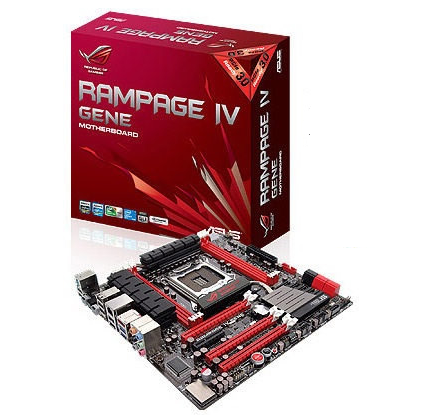

Asus INTEL RAMPAGE IV GENE

CPU
Intel® Socket 2011 for 2nd Generation Core™ i7 Processors
Supports Intel® Turbo Boost Technology 2
* Refer to www.asus.com for CPU support list
Chipset
Intel® X79
Memory
4 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2133(O.C.)
/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Quad Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Multi-GPU Support
Supports NVIDIA® SLI™ Technology
Supports AMD CrossFireX™ Technology
Expansion Slots
2 x PCIe 3.0/2.0 x16 (dual x16, red)
1 x PCIe 3.0/2.0 x16 (x8 mode, red)
1 x PCIe 2.0 x4
Storage
Intel® X79 chipset :
2 x SATA 6Gb/s port(s), red
3 x SATA 3Gb/s port(s), black
1 x eSATA 3Gb/s port(s), red
Support Raid 0, 1, 5, 10
ASMedia® ASM1061 controller : *1
2 x SATA 6Gb/s port(s), red
LAN
Intel®, 1 x Gigabit LAN Controller(s)
Audio
SupremeFX III built-in 8-Channel High Definition Audio CODEC
- Output Signal-to-Noise Ratio (A-Weighted): 110 dB
- Output THD+N at 1kHz: 95 dB
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- SupremeFX Shielding™ Technology
- 1500 uF Audio Power Capacitor
- Gold-plated jacks
- X-Fi® Xtreme Fidelity™
- EAX® Advanced™ HD 5.0
- THX® TruStudio PRO™
- Creative ALchemy
- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel
USB Ports
ASMedia® USB 3.0 controller :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® X79 chipset :
12 x USB 2.0 port(s) (8 at back panel, black+white, 4 at mid-board)
ROG Exclusive Features
ROG Connect
Extreme Engine Digi+ II :
- 8 -phase CPU power design
- 3 -phase VCCSA power design
- 2 + 2 phase DRAM power design
Mem TweakIt
ProbeIt
UEFI BIOS features :
- ROG BIOS Print
- GPU.DIMM Post
GameFirst
iROG
Extreme Tweaker
Loadline Calibration
USB BIOS Flashback
Overclocking Protection :
- COP EX (Component Overheat Protection - EX)
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
ASUS TurboV EVO :
- CPU Level Up
ASUS EPU :
- EPU
ASUS Exclusive Features :
- MemOK!
- Onboard Button : Power/Reset/Clr CMOS (at back IO)
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS Q-Shield
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Operating System Support
Windows® 8.1
Windows® 8
Windows® 7
Windows® Vista
Windows® XP
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x eSATA 3Gb/s
1 x LAN (RJ45) port(s)
2 x USB 3.0
8 x USB 2.0 (one port can be switched to ROG Connect)
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x Clear CMOS button(s)
1 x ROG Connect On/ Off switch(es)
Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
3 x SATA 3Gb/s connector(s)
2 x CPU Fan connector(s)
3 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
11 x ProbeIt Measurement Points
1 x Power-on button(s)
1 x Reset button(s)
1 x Go Button(s)
Accessories
User's manual
I/O Shield
2 x SATA 3Gb/s cable(s)
4 x SATA 6Gb/s cable(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x ROG Connect cable(s)
1 x ROG theme label(s)
1 x 12 in 1 ROG Cable Label(s)
1 x ROG Door Hanger(s)
BIOS
64Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5,
ACPI2.0a Multi-Language BIOS
Manageability
WfM2.0, DMI2.0, WOL by PME, WOR by PME, PXE
Support Disc
Support DVD:
- Drivers and applications
* ASUS AI Suite II
* ROG CPU-Z
* ROG GameFirst Utility
* Sound Blaster X-Fi MB2 Utility
* ROG Mem TweakIt Utility
* ASUS AI Charger+
* WinZip
* ASUS USB 3.0 Boost
* ASUS Webstorage
* DAEMON Tools Pro Standard
* Kaspersky® Anti-Virus 1-year license
Form Factor
uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
