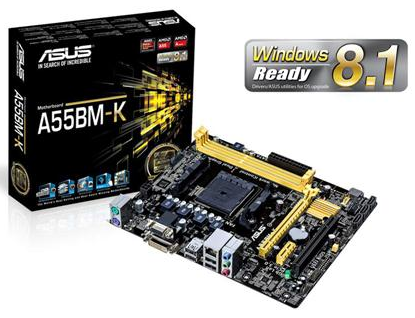

Asus AMD A55BM-K

CPU
AMD Socket FM2+ Athlon™/A- Series Processors
Supports CPU up to 4 cores
Supports AMD® Turbo Core 3.0 Technology
* Refer to www.asus.com for CPU support list
Chipset
AMD A55 FCH (Hudson D2)
Memory
2 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2133/1866/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Support AMD Memory Profile (AMP) memory
* The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above).
ASUS will update QVL once the DIMMs are available on the market.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows®
32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS
when you want to install 4GB or more memory on the motherboard.
Graphic
Integrated AMD Radeon™ R/HD8000/HD7000 Series Graphics in the A-Series  APU
Multi-VGA output support : DVI/RGB ports
- Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
Maximum shared memory of 2048 MB
AMD® Dual Graphics technology support *1
Expansion Slots
1 x PCIe 3.0/2.0 x16 *2
1 x PCIe 2.0 x1
1 x PCI
Storage
AMD A55 FCH (Hudson D2) chipset :
4 x SATA 3Gb/s port(s), dark brown
Support Raid 0, 1, 10, JBOD
LAN
Realtek® 8111G, 1 x Gigabit LAN Controller(s)
Audio
Realtek® ALC887-VD 8-Channel High Definition Audio CODEC *3
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
USB Ports
AMD A55 FCH (Hudson D2) chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board)
Special Features
ASUS EPU :
- EPU
ASUS Digital Power Design :
- Industry leading Digital 3 +1 Phase Power Design
- ASUS DIGI+ VRM Utility
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS Q-Design :
- ASUS Q-Slot
Operating System Support
Windows® 8.1 , 32bit/64bit
Windows® 8 , 32bit/64bit
Windows® 7 , 32bit/64bit
Windows® Vista , 32bit/64bit
Windows® XP , 32bit
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x COM port(s) connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
Accessories
User's manual
I/O Shield
2 x SATA 3Gb/s cable(s)
BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7,
ACPI 4.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3,
My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut
functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Support Disc
Drivers
ASUS utilities
ASUS Update
Anti-virus software (OEM version)
Form Factor
mATX Form Factor
8.9 inch x 7.2 inch ( 22.6 cm x 18.3 cm )
