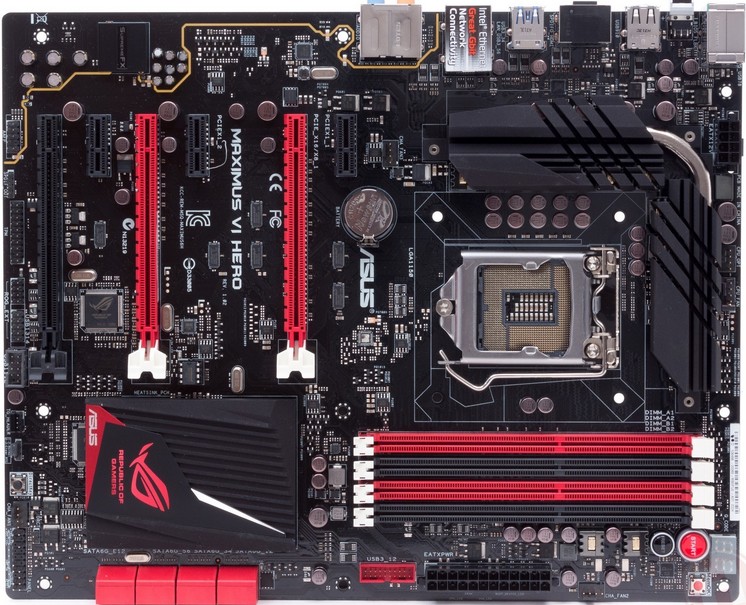

Asus INTEL MAXIMUS VI HERO
₱13700
Socket 1150 |
Intel®
Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
Processors Supports Intel® 22 nm CPU |
Intel® Z87 |
4 x DIMM, Max. 32GB, DDR3
3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333
MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture |
N/A |
Integrated Graphics Processor - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
2 x PCIe 3.0/2.0 x16 (x16 or dual x8, red) 1 x PCIe 2.0 x16 (black) *1 3 x PCIe 2.0 x1 *2 |
Intel® Z87 chipset : 6 x SATA 6Gb/s port(s), red Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *3 ASMedia® ASM1061 controller : *4 2 x SATA 6Gb/s port(s), red |
Intel® I217V, 1 x Gigabit LAN Controller(s) |
N/A |
N/A |
ROG SupremeFX 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking |
Intel® Z87 chipset : *5 6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board) Intel® Z87 chipset : *6 8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board) |
ASUS Dual Intelligent Processors 4 with 4-Way Optimization
: - The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration CPU Level Up |
1 x PS/2 keyboard/mouse combo port(s) 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.0 4 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) 1 x USB BIOS Flashback Button(s) |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
