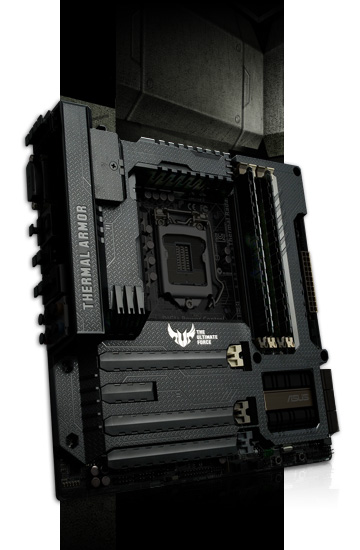

Asus INTEL GRYPHON Z87 w/armor kit
₱10600
Socket 1150 |
Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors |
Intel® Z87 |
4 x DIMM, Max. 32GB, DDR3 1866/1600/1333 MHz Non-ECC,
Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
N/A |
Integrated Graphics Processor Multi-VGA output support : HDMI/DVI ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 1 x PCIe 2.0 x16 (x4 mode, black) 1 x PCIe 2.0 x1 |
Intel® Z87 chipset : 6 x SATA 6Gb/s port(s), brown Support Raid 0, 1, 5, 10 |
Intel® I217V, 1 x Gigabit LAN Controller(s) |
N/A |
N/A |
Realtek® ALC892 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking |
Intel® Z87 chipset : 6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board) Intel® Z87 chipset : 8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board) |
TUF ENGINE! Power Design : - 8 +2 Digital Phase Power Design - TUF Components (Alloy choke, Ti-Cap. & MOSFET; certified by military-standard) - ASUS DIGI+ Power Control Utility Ultimate COOL! Thermal Solution : - TUF Thermal Radar 2 |
1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.0 (blue) 4 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) |
mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
