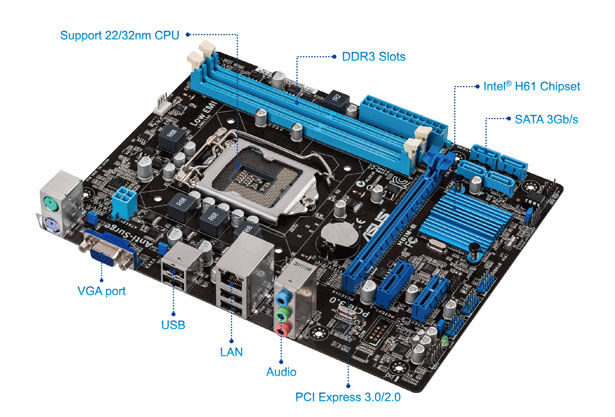

Asus INTEL H61M-E
₱2464
Socket 1155 |
Intel® Socket 1155 for 3rd/2nd Generation Processors |
Intel® H61(B3) |
2 x DIMM, Max. 16GB, DDR3
2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC,
Un-buffered Memory Dual Channel Memory Architecture |
Integrated
Graphics Processor VGA output support : RGB port - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz Maximum shared memory of 1024 MB |
1xPCIe 3.0/2.0 x16 *1 2xPCIe2.0x1 |
Intel® H61(B3) chipset : 4 x SATA 3Gb/s port(s), blue |
Realtek®8111F,1xGigabitLAN Controller(s) |
NA |
NA |
Realtek® ALC887 8-Channel High Definition Audio CODEC *2 |
Intel® H61(B3) chipset : 10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board) |
ASUS Exclusive Features : - AI Suite II - Ai Charger - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl ASUS Quiet Thermal Solution : - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 100% All High-quality Conductive Polymer Capacitors |
1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x LAN (RJ45) port(s) 4 x USB 2.0 3 x Audio jack(s) |
uATX Form Factor 8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm ) |
